Ever wonder how that big box outside your house magically cools your entire home? It’s not magic, but a clever thermodynamic process where all the central air conditioning unit parts work together in a constant loop. The system's goal isn't to create cold air, but to efficiently remove heat from the air you already have.
This entire system relies on a special substance called refrigerant, which cycles between a liquid and a gas to absorb thermal energy from inside your home and release it outside.
How Your Central Air Conditioner Really Works
Before we dissect each component, let's look at the big picture. Think of your AC system as a dedicated heat taxi. Its only job is to pick up unwanted heat from your indoor air and shuttle it outdoors.
The whole operation is a fantastic feat of thermodynamics, pushing refrigerant through two main zones: an indoor unit and an outdoor one. Each zone has key parts designed for a specific leg of this heat-transfer journey. Once you grasp this fundamental loop, it's easier to understand why a small issue can bring the whole system to a halt and why regular tune-ups are so crucial.

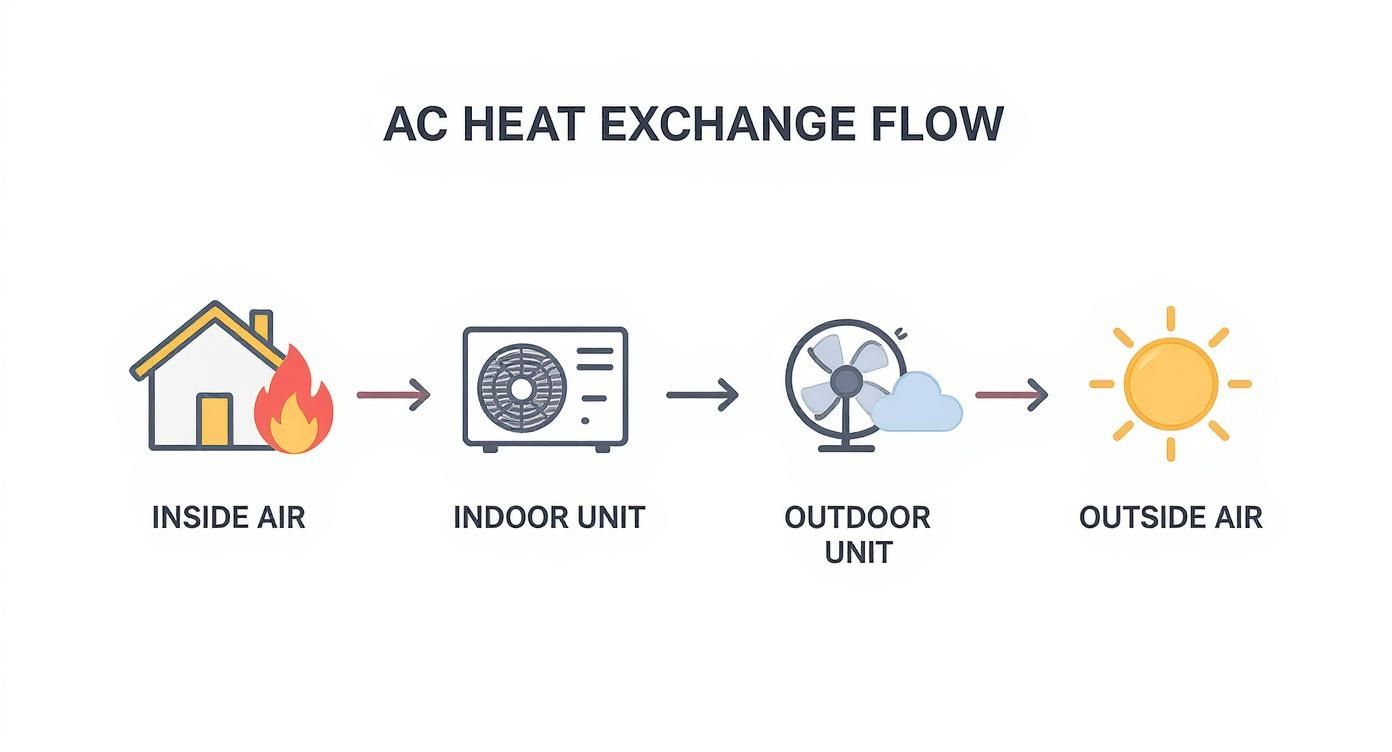

This visual gives you a great overview of the heat exchange process, showing how heat is pulled from your home's air and kicked to the curb.
As you can see, the indoor unit is all about absorbing heat, while the outdoor unit is responsible for getting rid of it. It’s a simple concept that makes a world of difference on a hot summer day.
The Two Halves of Your AC System
Your central AC is what we call a "split system." That just means it’s split into two main units that work as a team to cool your house.
- The Indoor Unit: You'll usually find this tucked away in a closet, attic, or basement. It holds the evaporator coil and the air handler (the fan). Its job is to suck in the warm, humid air from your living spaces and blow it across the frosty evaporator coil. This is where the heat and moisture are pulled right out of the air.
- The Outdoor Unit: This is that big metal cabinet you see in your yard. Inside, you've got the compressor and the condenser coil. Its mission is to take all that heat the refrigerant just picked up and release it into the outside air.
The secret to the whole process is a basic law of physics: heat always moves from a warmer place to a cooler one. Your AC system just creates a super-cold surface (the evaporator coil) that your home's heat can't resist moving to.
This never-ending cycle of absorbing heat inside and releasing it outside is what keeps your home cool and comfortable. You can dive deeper into the complete process of air conditioning and see how these systems are engineered for comfort.
Next, we'll pop the hood on each of these units and look at the specific parts that make it all happen.

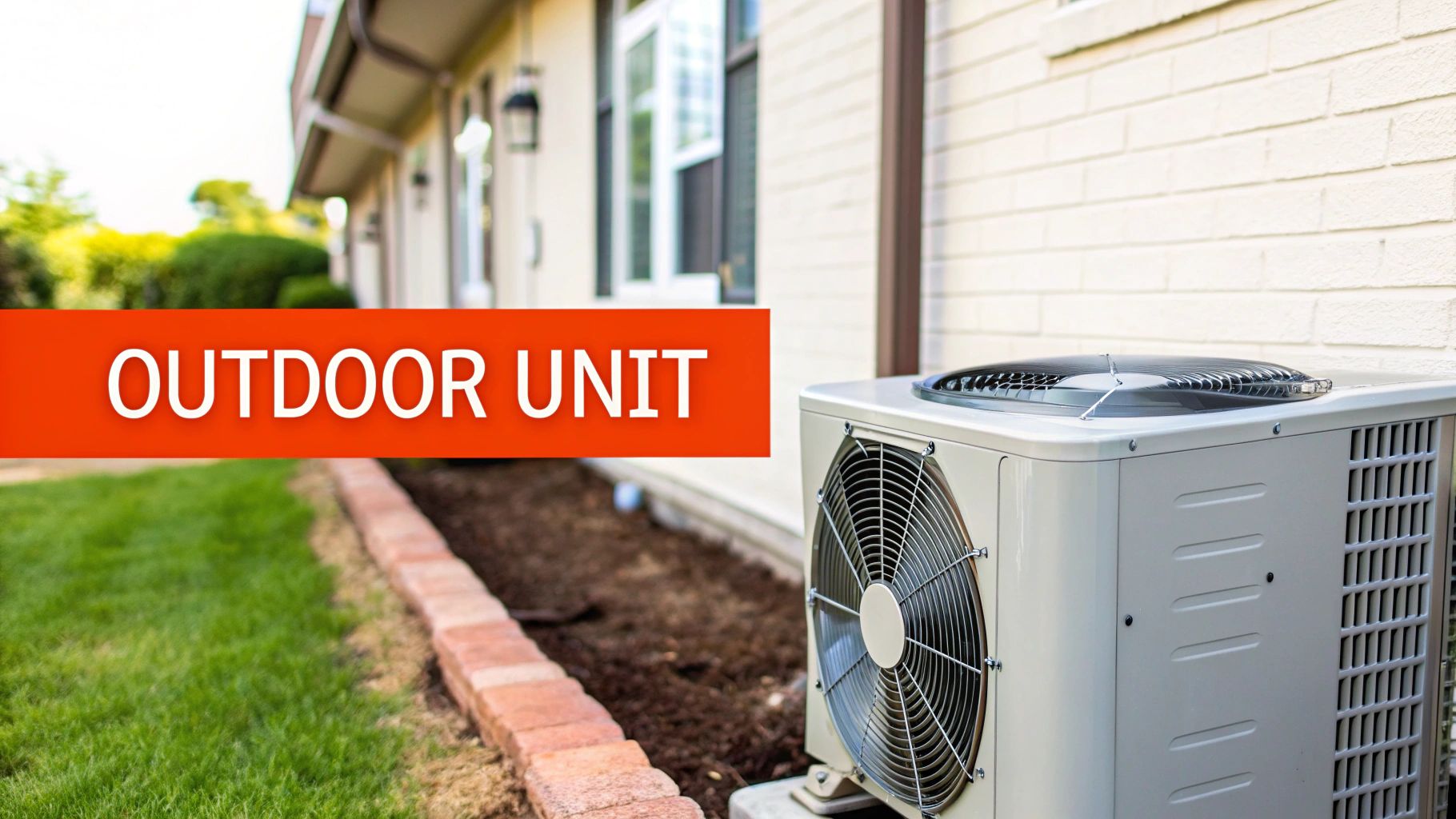

Exploring the Outdoor AC Unit
Think of that big metal box sitting outside your house as the engine room of your entire air conditioning system. It’s the hardworking powerhouse where the real magic—or rather, the real heat transfer—happens. While it looks like a single, solid piece of equipment, it’s actually a carefully orchestrated team of components working together.
Its main job is pretty straightforward: take all the heat your system has pulled out of your home and dump it outside. To pull this off, it relies on three star players: the compressor, the condenser coil, and a powerful fan. Each one has a specific job in getting that unwanted warmth out of your house for good.
Getting to know these parts does more than just satisfy your curiosity. It helps you understand what's going on when things sound "off," empowering you to catch small issues before they turn into a full-blown system meltdown on the hottest day of summer.
The Compressor: The Heart of the System
If your AC system has a heart, the compressor is it. This robust motor is the pump that keeps the refrigerant flowing through the system's veins, much like a heart circulates blood through your body. It receives cool, low-pressure refrigerant gas from the indoor unit and puts the squeeze on it.
This compression process is intense, dramatically raising the refrigerant's pressure and temperature. It leaves the compressor as a very hot, high-pressure gas. This step is critical because it primes the refrigerant to get rid of its heatload efficiently once it moves on to the next stage.
A healthy compressor is the linchpin of the entire cooling process. It's also typically the most expensive part to replace, which is why paying attention to early warning signs—like strange buzzing, clanking, or banging noises—is so crucial for your system's lifespan.
The Condenser Coil and Fan: The Heat Release Team
Once the hot gas leaves the compressor, it flows directly into the condenser coil. A great way to visualize this part is to think of a car's radiator. The coil is a maze of tubing, covered in thin metal fins, designed to maximize the surface area for heat to escape.
As the superheated refrigerant snakes through these tubes, the large condenser fan mounted on top of the unit kicks into gear. It pulls a massive volume of ambient air through the side vents and over the coils. This airflow strips the heat away from the refrigerant, causing it to cool down and condense from a gas back into a liquid. All that heat absorbed from inside your home is literally blown away into the great outdoors.
This partnership is everything. If that fan motor fails or the coils get clogged with dirt, grass clippings, and cottonwood fluff, the heat has nowhere to go. Your system will quickly start to struggle, work way too hard, and eventually fail to cool. For major issues, you'll want a professional's diagnosis, but homeowners can learn more about what a proper AC installation and system setup looks like to ensure these parts are set up to work correctly from the very beginning.
To help you keep track, here's a quick breakdown of what these parts do and what to watch out for.
Outdoor Unit Components at a Glance
This table offers a quick reference for the key players in your outdoor unit, their jobs, and the telltale signs that one of them might be in trouble.
| Component | Primary Function | Common Signs of Trouble |
|---|---|---|
| Compressor | Pressurizes refrigerant, circulating it through the system. | Loud banging, buzzing, or clicking; system trips circuit breaker. |
| Condenser Coil | Allows heat to escape from the hot refrigerant gas. | Reduced cooling; visible dirt or debris blocking the fins. |
| Condenser Fan | Pulls air over the condenser coil to aid heat release. | Fan blades not spinning; unit overheats and shuts down. |
Keeping an eye and ear on these components can make a huge difference in the health and efficiency of your central air system.
Inside Your Home's Indoor AC Unit
While the outdoor unit is busy dumping all that heat, the real cooling magic is happening inside your house. Usually tucked away in a closet, attic, or basement, the indoor unit is where your home's air gets transformed from warm and muggy to cool and refreshing. It’s home to some of the most critical central air conditioning unit parts that make or break your comfort.
This indoor setup is where the "conditioning" really happens—it pulls heat out of your air and wrings out the humidity. It all comes down to three key players working together: the evaporator coil, the expansion valve, and the air handler. Getting to know how this team works is the secret to keeping your air quality high and your system running efficiently.

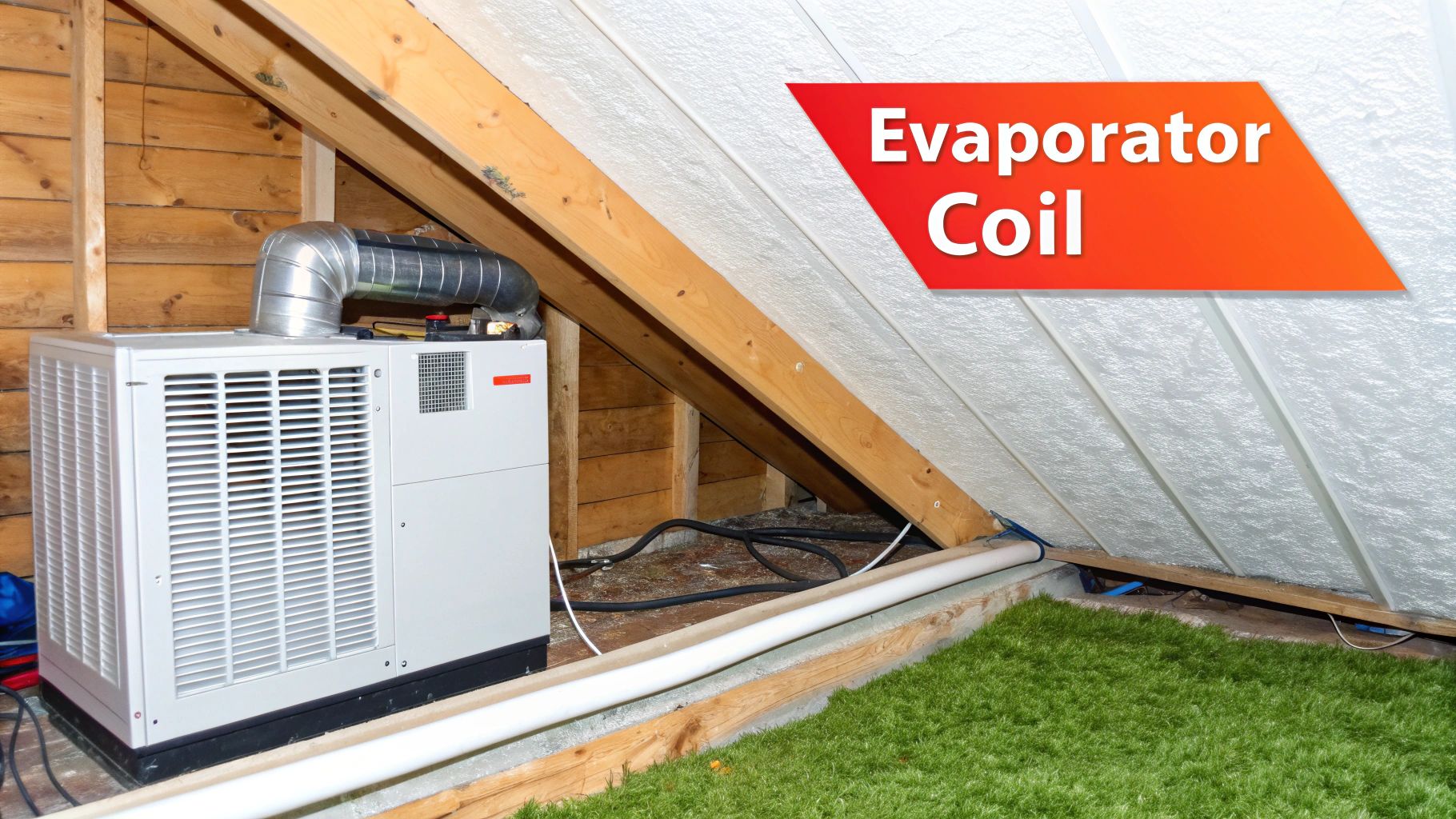

The Evaporator Coil: The Cold Sponge
Think of the evaporator coil as a super-chilled, metallic sponge. Your system's fan pulls warm, humid air from your living spaces and shoves it through the frigid fins of this coil. At that exact moment, the coil is full of extremely cold, low-pressure liquid refrigerant that just made the trip from the outdoor unit.
When the warm air hits the cold coil, two things happen instantly. First, the coil soaks up the heat like a sponge soaks up water. Second, moisture in the air condenses on the coil's surface, just like a glass of ice water "sweats" on a hot day. This one-two punch cools and dehumidifies the air, which is the key to feeling comfortable. A clean coil is everything here; if it's caked in dust, it can't absorb heat well, leading to weak cooling and higher energy bills.
A dirty evaporator coil can slash your system's efficiency by up to 20%. The best thing you can do is keep your filters clean and have the coil professionally cleaned to ensure it can do its job.
The Expansion Valve: The Pressure Controller
Before the refrigerant gets to the evaporator coil, it has to go through a pretty dramatic change. That's the job of the expansion valve. This small but crucial part acts like a gatekeeper. It takes the high-pressure liquid refrigerant coming from outside and forces it through a tiny pinhole opening.
This sudden pressure drop causes the refrigerant to instantly expand into a frosty, low-pressure mist. It's a lot like an aerosol can—when you press the nozzle, the contents expand and feel intensely cold. This scientific principle is what gets the refrigerant cold enough to actually absorb the heat from your home's air.
The Air Handler and Blower Motor
The air handler is basically the big metal box that holds the evaporator coil and the system's fan, which we call the blower motor. This motor is the workhorse responsible for all the air circulation in your home. It sucks in warm air from your rooms through the return vents, pushes it over the ice-cold evaporator coil, and then sends the newly chilled air back into your home through the supply vents.
This diagram gives you a great look inside a typical residential air handler, showing where the blower, coils, and filter all fit together.
As you can see, these parts are all arranged to treat the air and get it moving. Keeping the blower motor clean and the air filter fresh is non-negotiable for strong airflow. If you don't, you're just putting a huge strain on the whole system. After all, without the air handler, that wonderfully cool air would have no way to get from the unit to you.
The Connectors and Controls of Your AC System
We've talked about the big, heavy-hitting components—the indoor and outdoor units—but they can't work alone. A whole network of unsung heroes connects and controls the entire cooling process. Think of these parts as the nervous system and arteries of your AC, making sure refrigerant, electricity, and water get exactly where they need to go.
Without these crucial connectors and controls, you'd just have a couple of very expensive metal boxes doing absolutely nothing. Let's break down the roles of the refrigerant lines, thermostat, and condensate drain, because a problem with one of them can shut the whole system down and even cause a mess in your home.

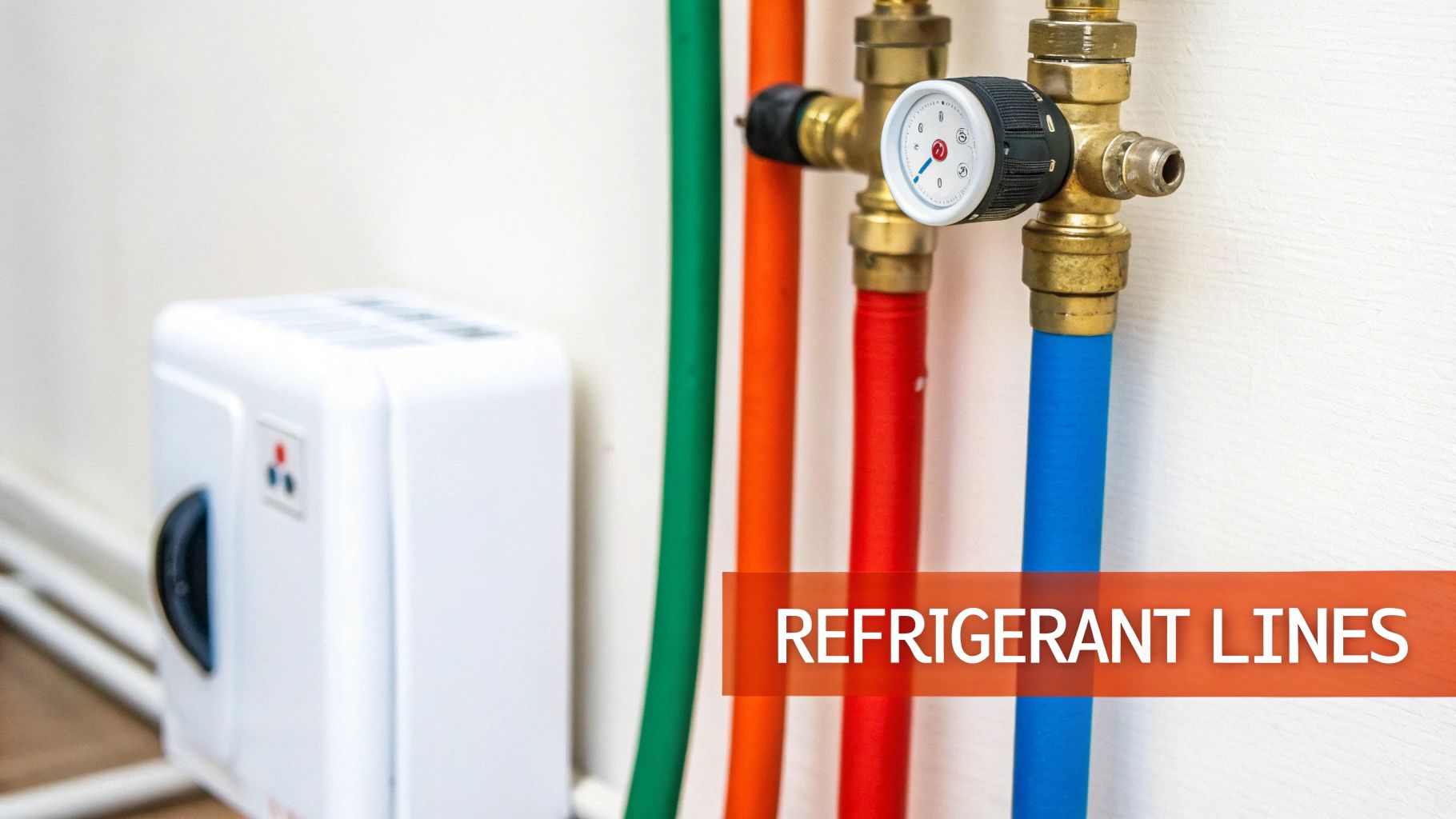

Refrigerant Lines: The System's Arteries
Imagine a dedicated superhighway running between your indoor and outdoor units. That's essentially what your refrigerant lines are. This pair of copper tubes is the only path for the refrigerant to travel on its continuous heat-exchange mission.
One line, the fatter, insulated one, brings cold refrigerant into your house. The other, smaller line carries that same refrigerant—now hot after absorbing your home's heat—back outside to dump it. That insulation on the larger "suction line" is key. It stops the pipe from sweating and dripping all over the place, and it also keeps the refrigerant from warming up on its way to the evaporator coil, which would make your system work harder than it needs to.
The Thermostat: Your AC's Brain
The humble thermostat is the command center for your entire cooling system. It’s always sensing the room's temperature, and it’s the component that tells the air conditioner when to kick on and when to take a break. While you might remember the old simple dial or mercury switch thermostats, today's controls are light-years ahead.
It's no surprise that the market for these control panels, valued at $12.1 billion, is booming. This growth is all about our demand for better energy efficiency and smarter system management. If you're interested, you can dig into more data on the growing market for advanced AC controls.
A properly set thermostat can make a huge difference in your energy bills. Just a one-degree change can affect your cooling costs by a few percentage points. Smart thermostats take it to another level by learning your habits and creating an optimized schedule for you.
The Condensate Drain: Getting Rid of the Gunk
As your AC pulls all that sticky humidity out of the air, it turns into water on the cold evaporator coil. The condensate drain line is a simple PVC pipe with one job: get that water safely out of your house, usually to a floor drain or outside.
But what happens when it gets clogged with dust, algae, and other gunk? The water has nowhere to go but back up. A clogged drain line is one of the most frequent—and easily avoidable—AC service calls we see. This backup can cause two big problems:
- System Shutdown: Most modern units have a safety float switch. When it detects rising water, it shuts the entire system down to prevent a flood.
- Water Damage: If that safety switch fails or doesn't exist, the drain pan will overflow, potentially causing thousands in water damage to your ceilings, walls, and floors.
A little preventative maintenance goes a long way here. Pouring a cup of diluted vinegar down the line every few months can keep it clear and prevent a massive headache down the road.
Essential Maintenance and When to Call a Professional
Knowing the different parts of your central air conditioner is one thing, but making sure they last is another. True longevity comes down to proper care. Some of this you can absolutely handle yourself on a weekend, but other tasks are strictly for a certified professional. Knowing which is which will keep your system running smoothly and, more importantly, keep you safe.
A little bit of proactive effort can save you a world of trouble. Think of it this way: simple, regular checks are your first line of defense against a major, expensive breakdown right in the middle of a summer heatwave. Getting hands-on helps you protect your investment and really understand its condition.
Your DIY Maintenance Checklist
You don't need a truck full of special tools or years of training for these tasks. Tackling them regularly will boost your AC's efficiency and help it last longer.
- Change Your Air Filter: This is, without a doubt, the easiest and most important job you can do. A clogged filter is like trying to breathe with a pillow over your face—it chokes the airflow and makes your system struggle. Check it every month and plan on replacing it at least every 90 days.
- Clean the Outdoor Unit: Your condenser coil's job is to dump heat outside, and it can't do that if it's covered in gunk. Gently rinse the fins with a regular garden hose to get rid of grass clippings, dirt, and leaves. Just be sure to never use a pressure washer, as it can easily damage the delicate fins. If you need some pointers, you can learn a lot by reading up on maintaining your condenser coils and applying those same ideas.
- Clear the Condensate Drain Line: Every few months, pour a cup of distilled vinegar down the drain line. This simple trick helps kill the algae and sludge that can build up and cause a clog, which could lead to water damage or even a system shutdown.
Neglecting the basics is one of the top reasons air conditioners fail. According to ENERGY STAR, just swapping a dirty, clogged filter for a clean one can cut your air conditioner's energy use by 5% to 15%. That's an easy win.
Red Flags That Demand a Professional
While your DIY efforts make a huge difference, some jobs are just too risky to tackle yourself. If you spot any of these warning signs, it's time to step back and call a licensed HVAC technician.
- Refrigerant Leaks: Is your unit struggling to cool the house? Do you see an oily substance on the coils or hear a faint hissing sound? You likely have a refrigerant leak. Handling refrigerant is dangerous, requires special certification, and is definitely not a DIY project.
- Electrical Issues: Any loud buzzing or humming noises are immediate red flags. If your AC keeps tripping the circuit breaker, that’s another sign of trouble. These often point to failing electrical parts like a capacitor or the compressor itself, creating a serious electrical hazard.
- Loud Mechanical Noises: Banging, grinding, or screeching are the sounds of a system in distress. These noises usually mean a major component, like the compressor or the blower motor, is on its last legs. Trying to fix these yourself can quickly turn a repairable issue into a full replacement.
Knowing the line between simple upkeep and a serious repair is crucial. To get a better idea of what the pros handle, take a look at our guide to professional air conditioning maintenance and see how an expert tune-up keeps a system in peak condition.
A Few Common Questions About AC Parts
Even when you have a good grasp of the basics, some specific questions always seem to pop up. Let's tackle some of the most common things homeowners ask about their central air conditioning parts, so you can feel more confident looking after your own system.
Getting familiar with these components is more relevant than ever. The global HVAC market was valued at a staggering USD 328.6 billion and is expected to climb to USD 577.5 billion by 2035. That’s a whole lot of air conditioners! This massive growth really drives home just how vital these systems have become in our daily lives. You can dig into more of the data on global HVAC market trends on futuremarketinsights.com.
This worldwide demand just goes to show how much we all depend on staying cool and comfortable.
What Is the Most Common Part to Fail in an AC Unit?
From my experience, the capacitor is one of the most common culprits when an AC unit suddenly quits. Think of this small, can-shaped part as the component that gives the motors the "kick" they need to get started. A classic sign of a failed capacitor is when you hear the outdoor unit humming, but the fan and compressor just won't start running.
Another frequent troublemaker is a clogged condensate drain line. As algae and gunk build up, this little pipe can get backed up, tripping a safety switch that shuts the whole system down to prevent a nasty water leak. The good news? Both of these issues can often be caught and prevented with regular professional maintenance.
How Can I Tell If My AC Compressor Is Bad?
A failing compressor—the real heart of your AC system—rarely dies silently. It usually gives you some pretty obvious warning signs that it’s in trouble. You'll want to pay close attention if you hear any loud banging, clanking, or grinding sounds coming from your outdoor unit, as these often signal a major mechanical failure inside.
Another big red flag is when the system constantly trips your circuit breaker, which means it’s drawing way too much electricity. And of course, if the air coming from your vents just isn't cold anymore, a struggling compressor is a likely suspect. Because this is the most complicated and costly of all the central air conditioning unit parts, you should always call in a pro if you think it's on its way out.
Never ignore loud, strange noises coming from your outdoor unit. A failing compressor can set off a chain reaction of other expensive problems, so the smartest move is to shut the system down and call for a professional diagnosis.
Can I Replace Central Air Conditioner Parts Myself?
Some tasks are absolutely perfect for a handy homeowner, but most part replacements are best left to a trained technician. You can and should handle simple jobs like swapping out your air filters every month or two, or giving the outdoor unit a gentle rinse with a garden hose to clear away dirt and debris.
However, trying to replace electrical parts like capacitors, fan motors, or the compressor is incredibly dangerous without the right training and specialized tools. On top of that, handling refrigerant is tightly regulated by the EPA and requires a special certification. For your own safety—and to avoid turning a small problem into a catastrophic one—it’s crucial to call for professional help for nearly all repairs.
How Often Should I Get My Central AC Unit Serviced?
I always recommend having your central air system professionally serviced once a year. The perfect time to get this done is in the spring, before the heat really sets in and you start depending on it every single day.
An annual tune-up gives a technician the chance to inspect, clean, and test all the key parts. They’ll check the coils, make sure refrigerant levels are correct, and test all the electrical connections. This kind of proactive care boosts your system's efficiency, helps keep your energy bills down, and is hands-down the best way to avoid a miserable and expensive breakdown on the hottest day of the summer.
