Components of Heat Pump: Your Complete Guide

A heat pump is a marvel of engineering, but it's not magic. Its core job is to move heat, not create it like a traditional furnace. Think of it as a highly efficient "heat taxi," picking up existing thermal energy and dropping it off where you need it—inside your home in the winter and outside in the summer. This elegant process is what makes it a dual-threat for both heating and cooling.

This entire operation hinges on a handful of key components working together in a continuous loop: the compressor, condenser coil, evaporator coil, expansion valve, and reversing valve.

How Your Heat Pump Moves Heat

So, how does it pull this off? The secret lies in a clever process called the refrigeration cycle. By changing the pressure and state of a special fluid (refrigerant), a heat pump can absorb warmth from the cold winter air and bring it inside. In the summer, it reverses the process, pulling heat out of your house and dumping it outdoors.

Each part has a distinct role, from pressurizing the refrigerant to allowing it to exchange heat with the air. Getting these parts to work in perfect harmony from day one is crucial, which is why a proper setup is so important. You can find out more by exploring our guide on professional heat pump installation.

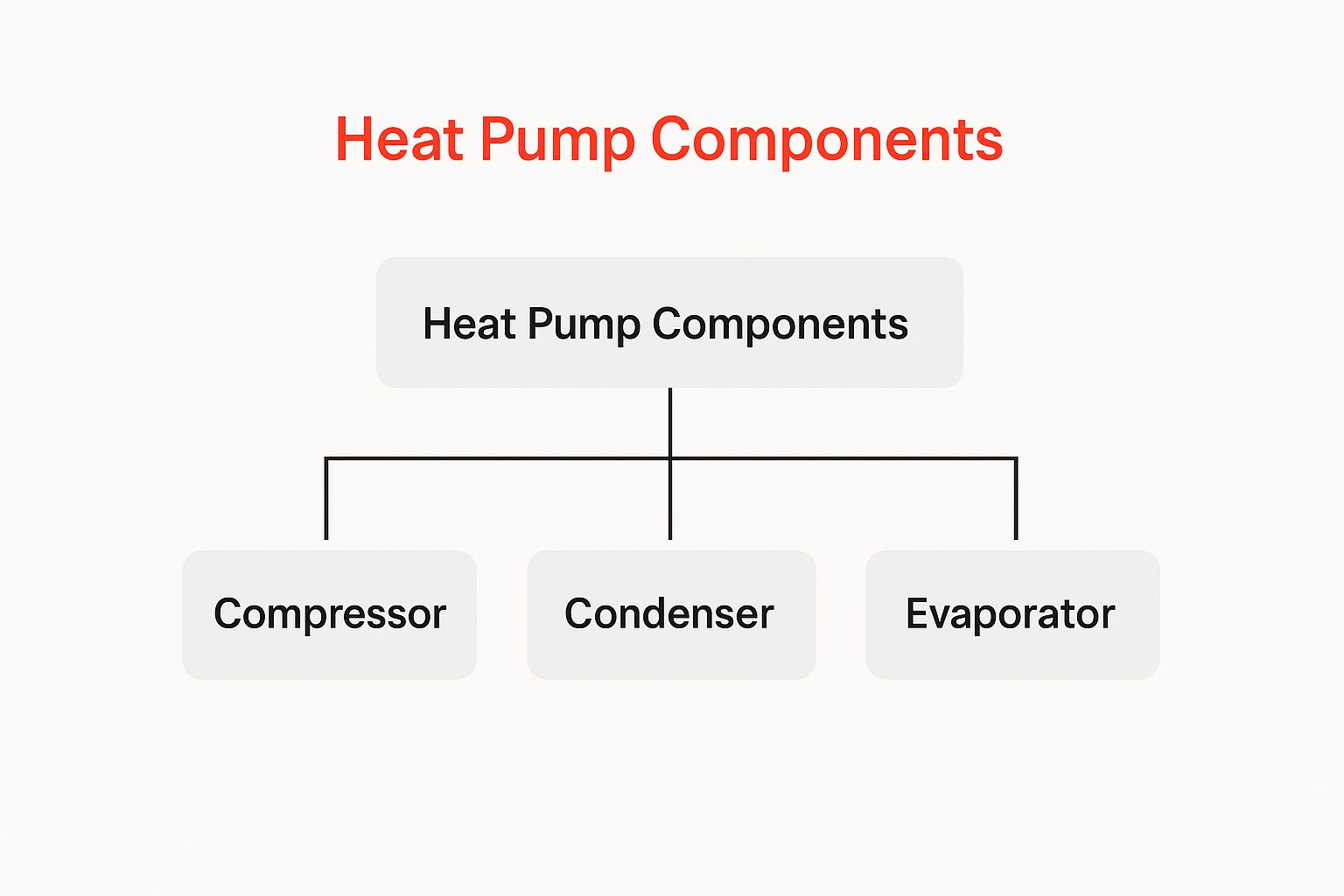

This diagram gives a great overview of how all the main components fit together.

As you can see, everything is connected. But at the center of it all is the compressor—it's the engine that powers the entire heat transfer process.

To give you a clearer picture, here's a quick rundown of what each major component does in both heating and cooling modes.

Key Heat Pump Components and Their Primary Functions

This table shows the beautiful symmetry of the system. Notice how the roles of the indoor and outdoor coils simply flip depending on whether you're heating or cooling? That's the reversing valve's job.

The System's Core Machinery

While every part is important, the "big four"—the compressor, evaporator, condenser, and expansion valve—are the real workhorses of the heat transfer cycle. Among them, the compressor is the undeniable MVP.

It’s the most complex, expensive, and power-hungry component in the entire system. In fact, the compressor often makes up 30-50% of a new unit's total cost and is responsible for about 60-70% of the electricity used while the heat pump is running. Thankfully, modern advancements like variable-speed compressors are making a huge difference, boosting efficiency by up to 20% compared to older, single-stage models.

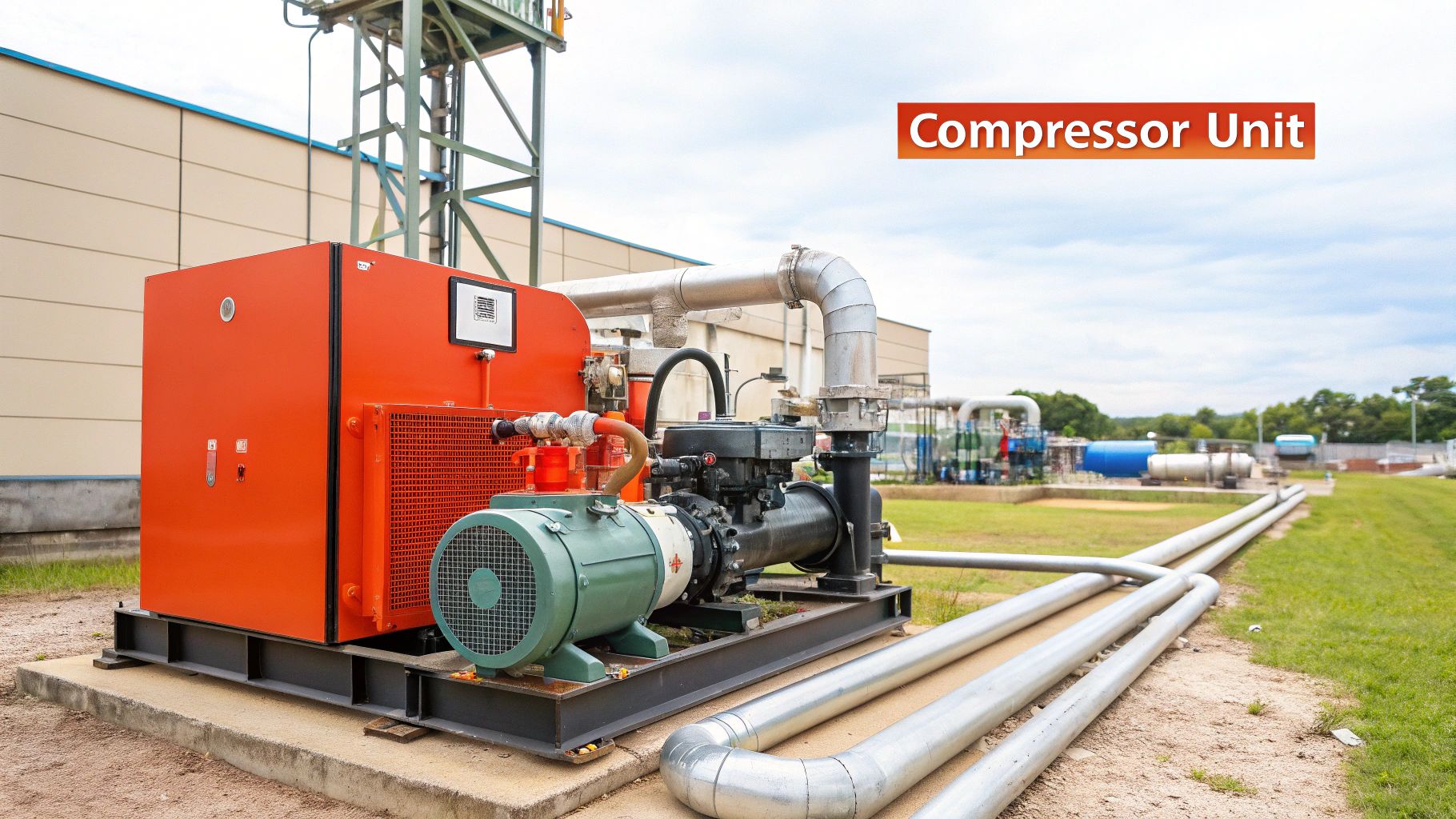

The Compressor: Your System's Hard-Working Engine

If you think of your heat pump as a vehicle for moving heat, then the compressor is its powerful, hardworking engine. It sits right at the heart of the system, doing the heavy lifting that makes everything else possible.

The compressor's main job is to take the cool, low-pressure refrigerant gas from the evaporator coil and, simply put, squeeze it. This compression process dramatically increases the refrigerant's pressure, which in turn skyrockets its temperature. This newly superheated gas is now primed and ready to circulate through the system, carrying its payload of thermal energy.

This isn't some abstract science—you’ve experienced this principle firsthand. Ever notice how a bicycle pump gets warm as you frantically inflate a flat tire? You're compressing air, and that action generates heat. A heat pump compressor does the exact same thing, just on a much more efficient and controlled scale. This same core idea is what makes large-scale gas compression stations work for moving natural gas across the country.

A Look at Compressor Technologies

Not all compressors are built the same, and the specific type in your unit has a huge impact on both your energy bills and your overall comfort. The technology has come a long way, with different options offering various levels of performance, measured by those SEER2 (cooling) and HSPF2 (heating) ratings you see on new equipment.

• Single-Stage Compressors: This is the old-school, no-frills option. It's either on or off—running at 100% capacity or not at all. It gets the job done, but this all-or-nothing approach can create noticeable temperature swings in your home and uses more energy than it needs to.
• Two-Stage Compressors: A solid step up. These units have two gears: a high speed (around 100%) for those brutally hot or cold days, and a low speed (around 65-70%) for milder weather. This added flexibility makes for more even temperatures and better efficiency.
• Variable-Speed Compressors: This is the top-of-the-line technology. These smart compressors can fine-tune their output in tiny increments, running anywhere from 25% to 100% capacity. By running for longer periods at much lower speeds, they deliver incredibly precise temperature control and sip electricity.

Think of a variable-speed compressor as the cruise control for your home's comfort. It makes constant, tiny adjustments to maintain the perfect temperature, avoiding the jarring, inefficient stops and starts of older systems.

Protecting Your System's Most Vital Part

Since the compressor is the most complex and hardest-working component, it's also one of the most likely to fail over time. A "compressor burnout" is a major problem, often caused by underlying issues like electrical faults, refrigerant leaks, or even just a severely clogged air filter that restricts airflow.

This is exactly why routine maintenance isn't just a suggestion—it's essential for your system's longevity.

A struggling compressor usually won't die silently. It'll give you warning signs, like strange grinding or clanking noises, or it might repeatedly trip your circuit breaker. Catching these symptoms early is absolutely critical. If you suspect something's wrong, getting a professional diagnosis can be the difference between a simple fix and a catastrophic failure. Our experts in HVAC repair can pinpoint compressor issues before they turn into a full system replacement.

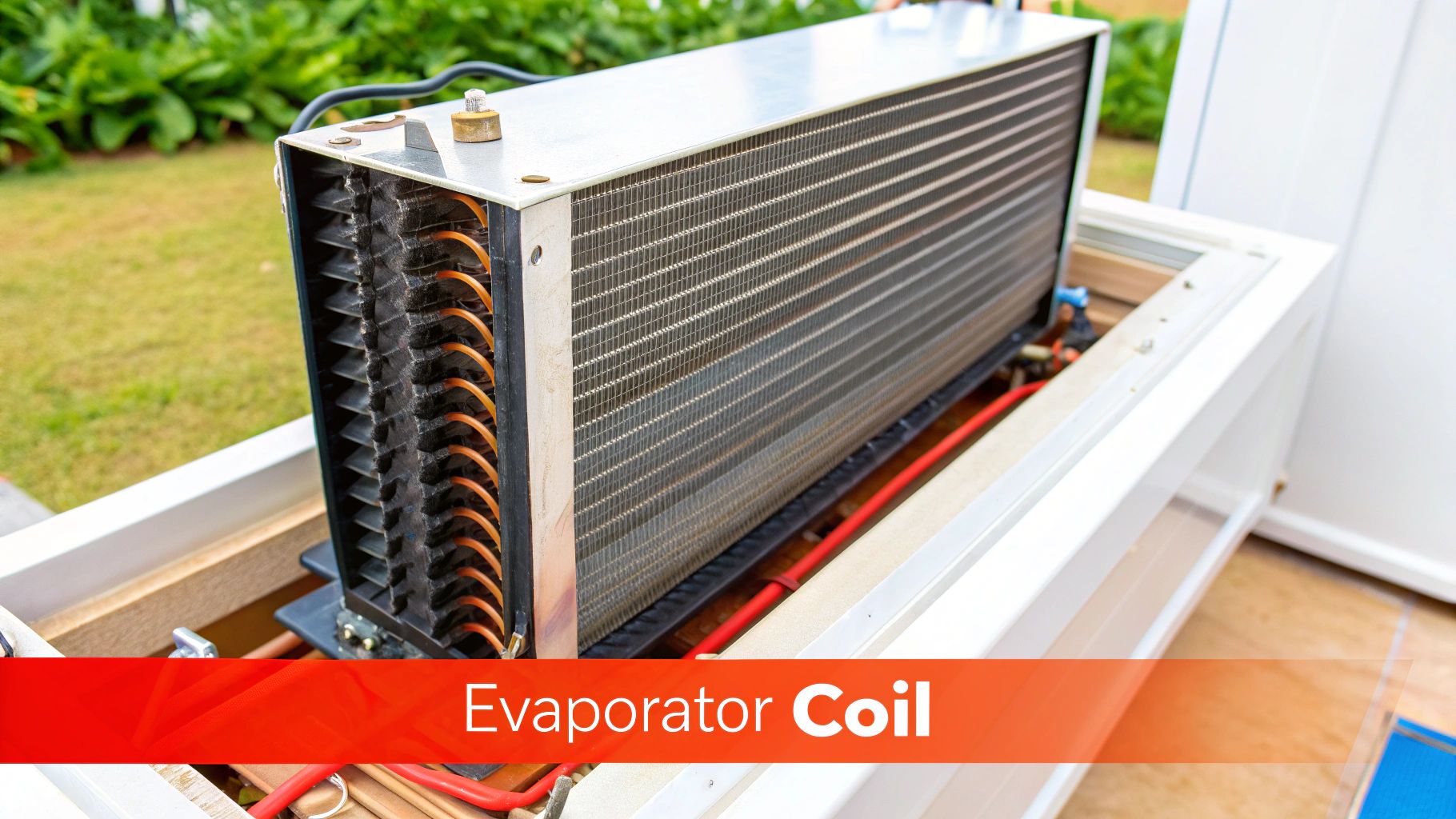

The Coils: Where the Real Heat Exchange Happens

If the compressor is the heart of your heat pump, then the heat exchange coils are its lungs. This is where the magic really happens—where heat is either pulled out of the air or pushed into it. Every heat pump has two sets of these vital coils: the evaporator coil and the condenser coil.

Don’t let the names intimidate you; they perfectly describe their jobs. The evaporator coil is where cold, low-pressure liquid refrigerant turns into a gas (it evaporates), absorbing a massive amount of heat in the process. The condenser coil does the opposite: it's where hot, high-pressure refrigerant gas cools down and turns back into a liquid (it condenses), releasing all the heat it was carrying.

These coils aren't just simple tubes. They are a finely engineered web of copper tubing snaking through a maze of thin aluminum fins. This design massively increases the surface area, making sure every last bit of heat can be transferred between the refrigerant flowing inside and the air passing over the fins.

An Ingenious Role Reversal

Now, here’s where the genius of the heat pump design really shines. The coils don't have a fixed job. When you flip the switch from cooling to heating, a special part called the reversing valve (more on that in a bit) completely changes their roles.

• In Summer (Cooling Mode): The coil inside your home acts as the evaporator. It soaks up heat and humidity from your indoor air, leaving you with that cool, crisp feeling. The outdoor coil becomes the condenser, dumping all that unwanted heat outside.
• In Winter (Heating Mode): The whole process flips. The outdoor coil becomes the evaporator, cleverly pulling heat from the cold winter air. Then, the indoor coil takes on the role of the condenser, releasing that captured warmth into your house.

This brilliant duality is what makes a heat pump such a versatile, all-in-one system. But this constant exposure—to indoor dust and outdoor grime—is their biggest weakness. A dirty coil simply can't transfer heat well, which forces your entire system to work overtime and sends your energy bills soaring.

It's hard to believe, but a layer of dirt just 1/100th of an inch thick on a coil can slash its efficiency by 5%. That tiny film makes your compressor run longer and harder, leading to more wear and tear and higher energy costs.

This is why regular coil cleaning isn't just a suggestion; it's absolutely essential for keeping your system running efficiently. Our complete guide to air conditioning maintenance walks you through why keeping these coils clean is so critical for performance and longevity.

Modern Coil Technology

Coil technology hasn't stood still. To squeeze out even more performance, manufacturers have moved beyond older, bulkier designs. Many modern heat pumps now feature compact microchannel heat exchangers made from advanced aluminum alloys. These aren't just smaller; they're more corrosion-resistant, improve heat transfer, and can cut the amount of refrigerant needed by up to 30%. It’s a huge leap forward in making HVAC systems more efficient, as highlighted in in-depth industry research.

2. Valves: The System's Traffic Directors

While the big components like the compressor and coils do the heavy lifting, a couple of smaller parts act as the system's traffic directors: the expansion valve and the reversing valve. Don't let their size fool you. These two valves are the brains behind the operation, precisely controlling the refrigerant's flow and pressure to tell the entire system what to do.

Honestly, without them, the whole heating and cooling cycle would just stop. They're responsible for getting the refrigerant to the right place, at the right pressure, at exactly the right time.

The Expansion Valve: Master of Pressure Drops

The expansion valve has one critical, and frankly, elegant job: to create a sudden, massive drop in pressure. As the high-pressure liquid refrigerant leaves the condenser, it gets squeezed through this tiny opening. This abrupt change in space forces the liquid to expand in a flash, causing its temperature to plummet.

A great way to picture this is with an aerosol can. Ever notice how cold the can gets when you hold down the nozzle for a while? That's the same principle. The contents are decompressing rapidly, making the can feel icy. The expansion valve does the exact same thing, turning warm liquid refrigerant into a super-chilled, low-pressure mist, ready to soak up heat in the evaporator coil.

The Reversing Valve: The Switch Between Hot and Cold

Now, this is the clever little part that actually makes a heat pump a heat pump. The reversing valve is what gives your system its dual personality, letting it switch from cooling in the summer to heating in the winter. Think of it like a switch on a railroad track, redirecting the flow of the hot refrigerant gas as it leaves the compressor.

• In Cooling Mode: The valve points the hot refrigerant toward the outdoor coil, so it can dump all that unwanted heat outside your house.
• In Heating Mode: A quick flip, and that same hot refrigerant is sent to the indoor coil instead, releasing its heat to warm up your home.

This simple change of direction completely flips the jobs of the indoor and outdoor coils. Your air conditioner literally becomes a heater.

Pro Tip: A stuck reversing valve is one of the most common reasons a heat pump gets locked in one mode—either blowing hot air in August or cold air in January. Hearing a distinct "whoosh" when the system switches over is perfectly normal, but if it's stuck, you'll need a technician to take a look.

How to Spot Valve Problems

Catching a failing valve early can save you a lot of headaches and money. A stuck reversing valve is usually pretty obvious, but a faulty expansion valve can be trickier. Its symptoms often look a lot like other problems, like a low refrigerant charge.

Here are a few tell-tale signs of valve trouble:

• Weak Heating or Cooling: The system is running, you can hear it, but it just can't seem to get the house to the right temperature.
• Frosty Coils: If you see ice building up on either the indoor or outdoor coils, it's a big red flag for a refrigerant flow problem, often pointing right back to a bad expansion valve.
• Weird Noises: That "whoosh" is fine, but if you start hearing grinding, hissing, or loud clanking, a valve could be struggling or failing.

Getting these issues checked out quickly is key to keeping your entire heat pump running smoothly and efficiently.

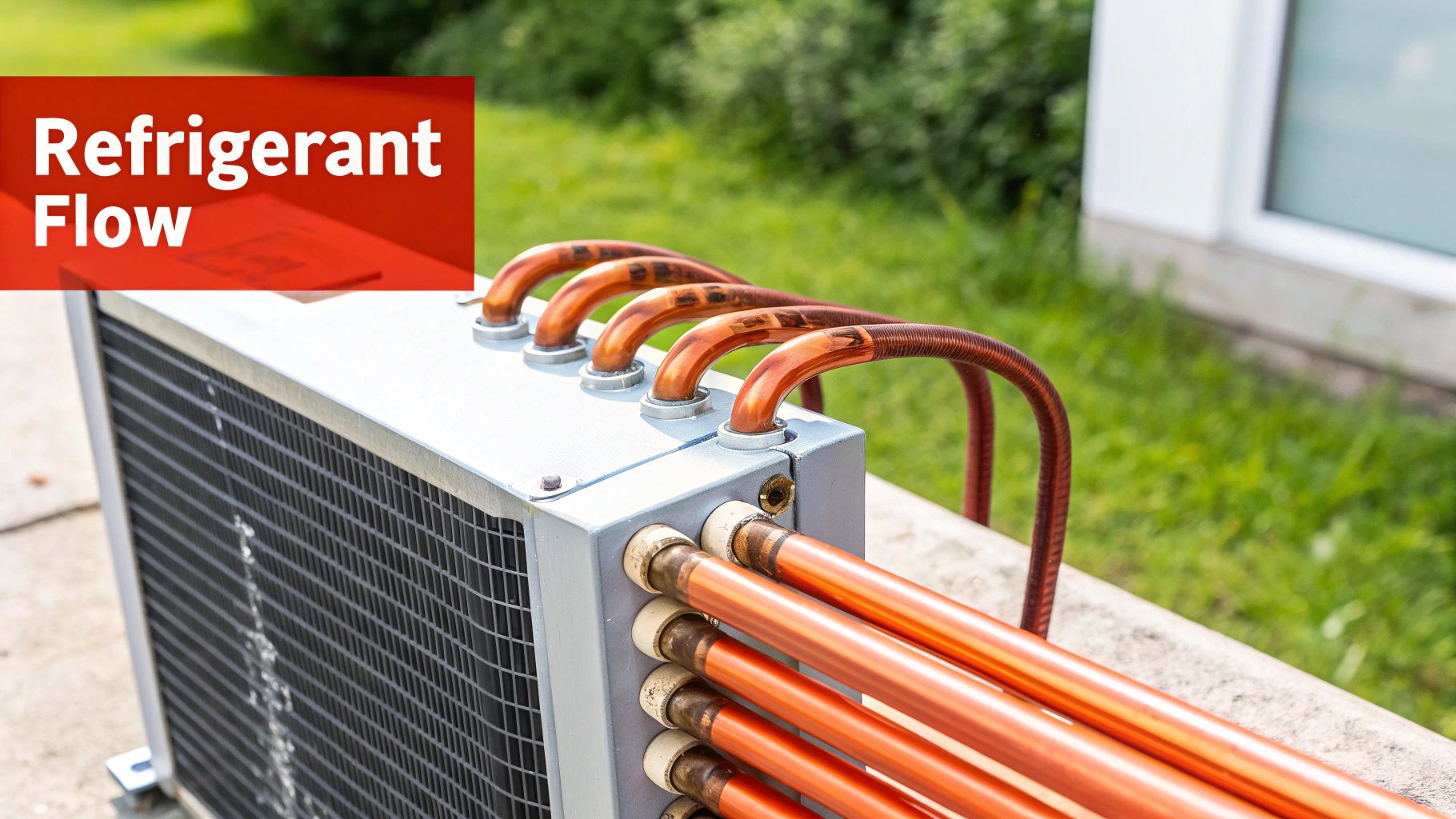

Refrigerant: The Thermal Courier

It’s a common misconception that refrigerant is a type of fuel that your heat pump burns through. In reality, it’s much more like a dedicated thermal courier, a specialized chemical compound whose entire job is to pick up heat in one place and drop it off somewhere else.

The magic is in its ability to change states—from a liquid to a gas and back again—at very specific temperatures and pressures. When the refrigerant evaporates (turning from a liquid to a gas), it soaks up an incredible amount of heat from its surroundings. Later, when it condenses (turning from a gas back to a liquid), it releases all of that stored heat.

This endless cycle is the very heart of how a heat pump can pull warmth out of the frigid winter air or dump your home’s heat outside on a blistering summer day.

The Evolution of Refrigerants

The specific chemical used as a refrigerant has changed a lot over the years, mostly driven by environmental concerns. It's a hot topic in the HVAC world, constantly evolving with new regulations.

• R-22 (Freon): This was the king for decades. But we eventually discovered it was terrible for the ozone layer, so its use in new systems was banned after 2010.
• R-410A (Puron): This became the go-to replacement for R-22. While it’s safe for the ozone, it's a powerful greenhouse gas with a high Global Warming Potential (GWP). You'll still find it in millions of systems today.
• Emerging Alternatives (A2Ls): Now, the industry is shifting again. New refrigerants like R-32 and R-454B are taking over because they have a much lower GWP, helping to meet stricter environmental standards.

Refrigerant is meant to be in a closed-loop system, sealed for life. If your heat pump is "low on refrigerant," it hasn't been used up—it means there's a leak somewhere. This not only wrecks your system's performance but also releases harmful chemicals, making it a problem that needs a professional fix, fast.

Why the Correct Charge is Critical

Your heat pump is engineered to work with a very precise amount, or "charge," of refrigerant. Getting this amount wrong, even by a little, can lead to huge problems. According to industry studies, a refrigerant charge that is just 10% too low can increase your system's energy consumption by as much as 20% and significantly shorten the life of the compressor.

If the charge is too low, the compressor doesn't get the lubrication it needs, and the system can’t move enough heat. If it’s too high, you risk flooding the compressor with liquid refrigerant, which can cause total mechanical failure.

If you’re noticing weak heating or cooling, ice forming on the coils, or hearing strange hissing noises, a refrigerant issue could be the culprit. Because these are highly regulated chemicals that require special tools and certifications to handle, this is absolutely not a DIY job. Diagnosing and repairing a refrigerant leak should always be left to a licensed HVAC pro.

Fans, Controls, and Filters: The Supporting Cast

While the compressor and coils get most of the glory, a dedicated supporting cast is working tirelessly behind the scenes. These crucial parts—the fans, controls, and filters—are what allow your heat pump to operate efficiently and reliably. Without them, even the most powerful system is just an expensive box.

The fans are the workhorses, the true movers and shakers. You have an indoor fan (often called a blower) that pulls air from your home across the indoor coil, and an outdoor fan that pulls outside air over the outdoor coil. This constant circulation is the secret sauce; it’s absolutely essential for the heat exchange process to happen.

The Brains and Lungs of the Operation

Directing this whole performance is the control board. Think of your thermostat as the command center where you give the orders, but the control board is the field general that executes the plan. It takes your temperature setting and translates it into precise actions—telling the compressor when to kick on, the reversing valve when to switch, and the fans when to spin.

And then we have the humble air filter, which I like to think of as the system’s lungs. Its job is simple but vital: it captures dust, dander, pollen, and other gunk before it can reach and clog the delicate fins of your indoor coil. In fact, a dirty filter is one of the most common—and easily preventable—causes of a heat pump breakdown.

A clogged filter is like forcing your heat pump to breathe through a coffee straw. It strangles the airflow, making every component work harder. This leads to higher energy bills, a frozen coil in the summer, or even a completely burnt-out fan motor.

Simple Upkeep for a Healthy System

These supporting components are where you, the homeowner, can make the biggest difference with simple maintenance. With an estimated 190 million heat pump units in operation worldwide as of 2021, understanding this basic upkeep is more important than ever. For a deeper look, you can explore the global trends in the heat pump market.

Protecting your investment really comes down to a few easy steps:

• Check and change your air filter regularly. Every 30 to 90 days is a great rule of thumb, depending on your home.
• Keep the outdoor unit clear of debris. Make sure there are at least two feet of clearance around the unit, and keep it free from leaves, grass clippings, and snow drifts.

These small, consistent actions are the best way to protect the more complex parts of your heat pump and keep the entire system running smoothly for years to come.

Common Questions About Heat Pump Parts

Even after you get the hang of how a heat pump works, a few practical questions always seem to pop up. Let's tackle some of the most common things homeowners ask about their heat pump's components, upkeep, and what to do when things go wrong.

Getting straight answers helps you make better decisions for your home's comfort system.

Which Heat Pump Component Fails Most Often?

While any part can eventually wear out, some components are definitely under more constant strain than others. From what we see in the field, the compressor and the start capacitors for the fan motors are the usual suspects. Capacitors are like a battery for the motors, giving them that initial jolt of electricity to get spinning, and they simply wear out over time.

The compressor, being the heart of the system, has an incredibly demanding job. Its constant mechanical work makes it a common victim of wear and tear. The best way to prevent any part from failing early is to stick to a regular, professional maintenance schedule.

Can I Replace a Single Component Myself?

It's always tempting to save a few bucks with a DIY repair, but when it comes to heat pumps, it's rarely a good idea. Homeowners can absolutely handle tasks like changing air filters or gently hosing down the outdoor unit. Anything beyond that, though, is a job for a pro.

Working with refrigerant isn't just tricky; it requires federal EPA certification because of the environmental risks. Plus, the high-voltage electrical systems in these units are genuinely dangerous without the right training and tools. For your own safety and to keep your warranty intact, always call a qualified HVAC technician for repairs.

How Do I Know if My Refrigerant Is Low?

First, a crucial point: refrigerant isn't like gas in a car; it doesn't get "used up." If it's low, you have a leak somewhere. Watch for these telltale signs:

• The air coming from your vents just isn't as cold (or warm) as it should be.
• You notice ice or frost building up on the copper refrigerant lines or either of the coils.
• A hissing or bubbling sound is coming from the unit.
• Your energy bills suddenly shoot up without any other explanation.

If you suspect a leak, a technician needs to find and fix it before adding more refrigerant.

What Is the Difference Between the Indoor and Outdoor Coils?

This is a great question because it gets to the core of how a heat pump is so versatile. Both coils are heat exchangers, but their roles flip depending on whether you're heating or cooling.

In the summer (cooling mode), your indoor coil is the evaporator. It gets ice-cold, absorbing heat from your indoor air. The outdoor coil acts as the condenser, getting hot as it releases that captured heat outside.

When you switch to heating mode, the reversing valve does its magic and swaps their jobs. The outdoor coil becomes the evaporator (pulling heat from the cold outdoor air), and the indoor coil becomes the condenser, releasing that warmth into your home.
