Mastering the Installation of Split AC Systems

A proper installation of split ac doesn't start the day the tools come out. It begins way earlier, with careful, meticulous planning. This is the foundation for everything that follows, ensuring the system is perfectly sized, placed in just the right spot, and ready to deliver from the moment it’s switched on.

If you rush this part, you're setting yourself up for headaches down the road—think poor efficiency, surprisingly high energy bills, and a system that gives out long before its time.

Planning Your Split AC Installation Like a Pro

For any commercial job, success boils down to a thorough site assessment. This is way more than just finding an empty spot on a wall. It's a full-blown strategic evaluation of the entire space. The goal? Guaranteeing peak performance, rock-solid reliability, and making sure future maintenance is a breeze, not a nightmare.

This is the systematic approach the pros use to sidestep costly mistakes and make certain the new unit is a perfect match for the building's unique demands.

Calculating the Correct Cooling Load

First things first, you need to figure out the right cooling capacity, which we measure in British Thermal Units (BTUs). Get this wrong, and you're in for trouble.

An undersized unit will run itself ragged trying to cool the space, leading to serious wear and tear and sky-high energy bills. But going too big is just as bad. An oversized unit will blast the room with cold air and shut off too quickly, failing to properly dehumidify the air. The result is a cold, clammy, and uncomfortable environment.

To nail the BTU calculation for a commercial space, you have to look at the whole picture:

• Total Square Footage: This is your starting point, the baseline for everything else.
• Sun Exposure: A room with huge, sun-drenched windows needs a lot more cooling power than an interior office.
• Occupancy: How many people are usually in the space? A good rule of thumb is to add 600 BTUs for each person expected in the space.
• Heat-Generating Equipment: Think about what's inside. Commercial kitchens, server rooms, or even an office packed with computers all pump out a ton of heat.

Before starting any commercial split AC installation, a detailed site assessment is non-negotiable. This checklist breaks down the critical factors our technicians evaluate to ensure a flawless and efficient setup from day one.

Commercial Site Assessment Checklist

Properly evaluating these areas is the difference between an installation that just "works" and one that performs optimally for years.

Choosing the Optimal Location

Once you've got the size figured out, it's all about placement. You're looking for the sweet spot that maximizes airflow while keeping the unit easily accessible for service.

For the indoor unit, find a high spot on an exterior wall. This helps it distribute air evenly across the room. Just make sure it's not right next to a heat source or blocked by furniture, and never place it directly over sensitive electronics.

The outdoor unit needs just as much thought. It has to be in a well-ventilated spot with plenty of open space around it so it can breathe and get rid of heat effectively. Sticking it in direct, baking sunlight or cramming it into a corner with no airflow will cripple its efficiency and shorten its lifespan.

Here's a classic mistake we see all the time: forgetting to plan the route for the refrigerant lines and drainage. You absolutely have to map out a clear, direct path between the indoor and outdoor units. And that drain line needs a constant downward slope—no exceptions. Otherwise, water will back up and cause some serious damage.

The split system design, with its separate indoor and outdoor units, is popular for a reason. It's quieter and more efficient. The market definitely reflects that; valued at around USD 110.40 billion in 2024, the industry is only expected to keep growing. You can dig into the full split air conditioning systems market report if you want to see the numbers behind the trend.

At the end of the day, a professional assessment is the only way to be sure you're avoiding these common pitfalls and getting the job done right.

Gearing Up with the Right Tools and Safety Equipment

A successful split AC installation hinges on having the right gear before you even think about stepping on-site. Showing up unprepared doesn't just waste everyone's time; it creates a ton of unnecessary risks. A truly professional toolkit is way more than a standard set of wrenches. We're talking about specialized HVAC equipment that guarantees precision, efficiency, and—most importantly—safety from start to finish.

Think of it like this: anyone can hang a picture, but a professional builds the frame. The right tools let you build a system that’s not just working, but is perfectly sealed, correctly pressurized, and built to last for years. This means investing in gear that you can count on when you're in the thick of it.

The Essential HVAC Technician Toolkit

While every job throws you a curveball or two, there's a core set of tools that are completely non-negotiable for a professional split AC install. These aren't just nice-to-haves; they're foundational to doing the job right.

• Vacuum Pump: This is your MVP for purging moisture and other nasty gunk from the refrigerant lines before you charge the system. Skipping this step is just asking for internal corrosion and a dead compressor down the road.
• Manifold Gauge Set: You can't eyeball refrigerant pressures. A quality manifold gauge set is the only way to accurately read pressures, figure out what's going on, and charge the system to the manufacturer’s exact specs. No guesswork allowed.
• Flaring Tool Kit: Creating a perfect, leak-proof flare on copper tubing is an art, and you need the right tool to pull it off. A bad flare is probably the #1 cause of those slow, sneaky refrigerant leaks that kill performance over time.
• Tube Bender: Kinking a refrigerant line is a rookie mistake that chokes the refrigerant flow and cripples the whole system's efficiency. A proper tube bender lets you make smooth, clean bends that keep the line wide open.

Here's a look at a manifold gauge set, a piece of equipment you'll be using on every single job.

This setup is what allows a technician to see what's happening inside the system, reading both the low-side (blue) and high-side (red) pressures with precision.

Remember, you're working with high-voltage electricity and pressurized refrigerant lines. This stuff is inherently dangerous and there is zero room for error. Safety always, always comes before speed.

Non-Negotiable Safety Protocols

Beyond the tools themselves, a strict commitment to safety is what separates a pro from a liability. The risks—from electrical shock to nasty refrigerant burns—are very real.

Your personal protective equipment (PPE) is your first and best line of defense. At a minimum, this means safety glasses to shield your eyes from flying debris or refrigerant spray and a pair of durable work gloves to protect your hands from cuts and burns.

Electrical safety is absolutely paramount. Before you touch a single wire, grab your multimeter and confirm the power is off at the breaker. On commercial job sites, you need to follow proper lock-out/tag-out procedures to make 100% sure the circuit can't be accidentally switched back on while you're working. These aren't just "best practices"—they are habits that will literally save your life.

Securely Mounting the Indoor and Outdoor Units

Alright, with your tools laid out and safety checks done, it’s time to get to the physical part of the installation of split ac: mounting the units. This isn't just about making it look neat on the wall. The exact placement and stability of both the indoor and outdoor units directly impact how well they work, how long they last, and even the building's structural integrity. Precision is the name of the game here.

Get the mounting right, and you'll sidestep a host of future headaches, like water damage from a poorly pitched drain line or annoying vibrations rattling through the walls. A secure foundation is everything.

Positioning the Indoor Unit with Precision

First up is the indoor unit, the air handler. It all starts with the mounting plate. Think of this bracket as the backbone for the entire indoor setup. It has to be anchored directly into wall studs or solid masonry. Do not, under any circumstances, rely on drywall alone—it simply won't hold the unit's weight over the long haul.

Grab your level and make sure that plate is perfectly horizontal. Even a tiny tilt can mess with the internal condensate drain pan, which can lead to water overflowing and wrecking the wall. Once you've got it level, mark where you'll drill for the refrigerant lines and the drain hose.

Here’s a pro tip that’ll save you and your client a world of trouble: drill the pass-through hole at a slight downward angle, sloping from the inside to the outside. This simple trick uses gravity to make sure condensate water flows away from the building, preventing backups that can cause mold and thousands in water damage.

After drilling, you can go ahead and securely fasten the mounting plate to the wall. Double-check that it's completely flush and doesn't wobble. This gives you a solid base to work from.

Establishing a Solid Foundation for the Outdoor Unit

The outdoor condenser unit has its own set of rules. Its main job is to get rid of heat, so it needs plenty of airflow and a stable, level surface to sit on. The two most common ways to set this up are on a ground-level concrete pad or on heavy-duty wall brackets.

If you’re using a ground pad, the area needs to be cleared of all debris and perfectly leveled before you place the pad. The unit needs breathing room on all sides. Check the manufacturer’s specs, but 12-24 inches of clearance is a good rule of thumb. This ensures unrestricted airflow and makes it easier to service later on.

Using wall brackets? They need to be anchored into solid brick or concrete. These things are supporting a lot of weight and have to deal with constant vibration, so there’s no room for cutting corners.

• Vibration Dampers: Always, and I mean always, install rubber or composite vibration dampeners between the unit's feet and the pad or brackets. This is a small step, but it makes a huge difference in cutting down operational noise and stops vibrations from transferring into the building.
• Environmental Protection: If you can, position the unit out of direct, prolonged sunlight. And if you’re in a coastal area, try to shelter it from corrosive salt spray. This will go a long way in extending its life.
• Accessibility: Think about the tech who has to do maintenance down the line. Make sure there’s enough room to comfortably access service panels and valves.

The demand for these systems is exploding, and it’s easy to see why. The global market was valued at USD 286.86 billion in 2024 and is expected to hit USD 434.09 billion by 2034, with commercial projects being a huge part of that growth. For a deeper dive into these numbers, you can explore more about what's driving the split air conditioning systems market.

Connecting Refrigerant Lines and Electrical Wiring

Alright, with both units securely on the wall, it's time to tackle the most technical part of any installation of split ac: connecting the system's lifelines. This is where the real skill comes in. The refrigerant lines and electrical wiring are basically the circulatory and nervous systems for the unit. One tiny mistake here—a leaky flare nut, a loose wire—can lead to major headaches, from poor performance to a complete system failure.

Patience is your best friend during this stage. You need to be laser-focused on the manufacturer's specs. Every single connection has to be perfect, from the copper tubing flares right down to the terminal screws.

Mastering Leak-Proof Refrigerant Line Connections

The copper lineset is what bridges the indoor and outdoor units, letting refrigerant do its job of moving heat. Your number one goal here is a flawless, leak-proof seal. Anything less is a callback waiting to happen.

You'll start by cutting the copper tubing to length. Always leave a little slack; a taut line puts stress on the connections and invites leaks down the road. Once it's cut, you absolutely have to deburr the inside edge of the pipe. It’s a tiny step that’s easy to skip, but those little metal shavings can get sucked into the system and absolutely wreck the compressor.

Next up is flaring. With a quality flaring tool, you'll create that smooth, bell-shaped opening on the tube's end. Take a close look at the flare's surface. It needs to be perfectly uniform, with no cracks or weird spots, because that's the surface creating the seal.

Here's a rookie mistake I see all the time: overtightening the flare nuts. It's tempting to just crank it down, but that can easily crack the flare you just perfected and cause a leak. The only way to get this right is with a torque wrench. Every manufacturer gives you the exact torque specs for their flare nuts—use them. This guarantees a seal that’s tight enough to hold pressure without damaging the connection.

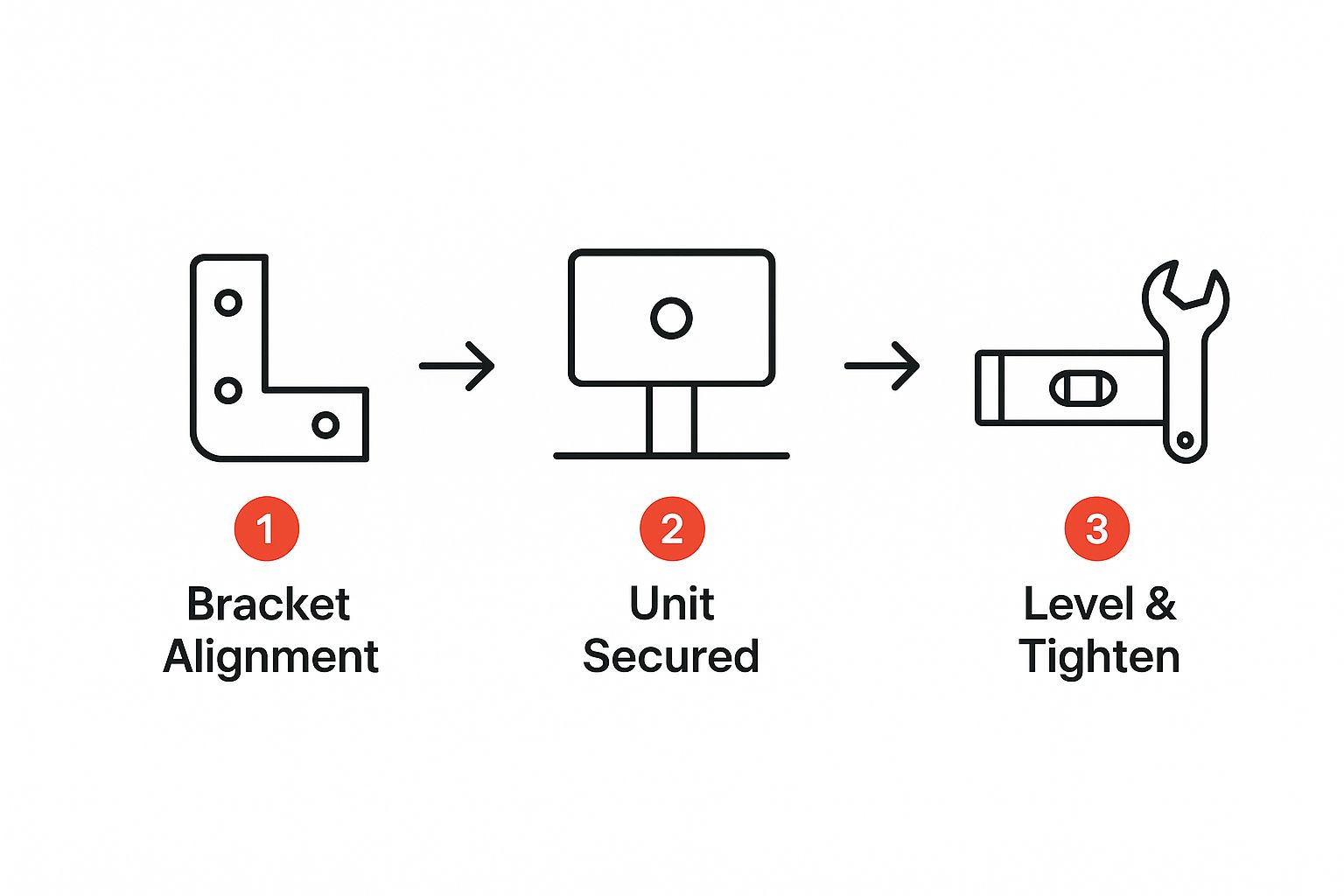

This infographic breaks down the physical steps for mounting the units, which sets the stage for the delicate connection work.

Following this simple flow—align, secure, level, and tighten—gives you a rock-solid foundation before you start running any of the sensitive lines or wires.

Navigating Electrical and Communication Wiring

With the refrigerant lines buttoned up, let's get this system powered up. This part involves running both power and communication cables between the two units. Safety is everything here. Before you touch a single wire, kill the power at the circuit breaker and double-check that it's dead with a multimeter.

In commercial buildings, wiring can throw you a few curveballs. You might be drilling through concrete, working around steel beams, or fishing wires through a crowded ceiling. Always run your wiring through a protective conduit. It shields the cables from damage and moisture and is usually required by code.

• Power Cable: This is the main juice for the outdoor condenser, which then feeds the indoor unit. Check the manufacturer's specs and use the right wire gauge for the job; undersizing it is a serious fire risk.
• Communication Cable: Think of this multi-wire cable as the system's brain. It lets the indoor and outdoor units talk to each other and the thermostat.
• Secure Connections: Strip each wire cleanly and land it on the correct terminal. The wiring diagram is your map—follow it precisely. A loose connection can arc, which is not only a fire hazard but can also cause the system to act erratically.

The HVAC industry is always changing. We're seeing more energy-efficient refrigerants like R-32 and R-290, plus a huge push for smart features like Wi-Fi and voice control. You can get more details on these split air conditioning market trends on cognitivemarketresearch.com. This evolution means newer units often have more complex communication wiring to handle all these advanced functions. Once all your connections are tight, wrap them neatly with electrical tape and put the terminal covers back on.

Final Commissioning: Evacuation and Performance Testing

Alright, the units are mounted and the lines are connected. Now for the moment of truth. This is the commissioning phase, where a collection of components becomes a living, breathing cooling system.

Don't even think about rushing this part. Cutting corners here isn't just bad practice; it's a direct path to an early system failure, an unhappy client, and a call-back you don't want.

First up, and arguably the most critical task, is pulling a deep vacuum on the refrigerant lines. This isn't just about sucking out the air. The real enemy here is moisture. Even a tiny amount of moisture can mix with refrigerant and create a highly corrosive acid that silently eats away at the compressor's guts.

Pulling a Deep Vacuum

To get started, you'll hook up your manifold gauge set and a quality vacuum pump to the system's service ports. But the real MVP of this process is a digital micron gauge. This isn't a "good enough" situation; the micron gauge is your only way of knowing for sure what's happening inside that lineset.

The magic number we're shooting for is 500 microns or less. Hitting this target is confirmation that you've boiled off and removed virtually all the moisture and other non-condensables.

Once your gauge reads 500 microns, you’re not done yet. Now it's time for a standing vacuum test. Isolate the system by closing off the valve to your pump and then just watch the micron gauge. If the number holds steady or only creeps up a little over the next 15-20 minutes, you’ve got a tight system. If it shoots up quickly? You've got a leak that needs to be hunted down and fixed before you go any further.

This step is a non-negotiable part of any professional install. It's also a foundational element of effective, long-term air conditioning maintenance. If you want to see what goes into keeping these systems purring for years, you can check out what our comprehensive maintenance programs cover.

Leak Checking and Final Performance Tests

After you’ve passed the vacuum test with flying colors, it's time to release the factory refrigerant charge into the system. You do this by slowly opening the service valves on the outdoor unit. As soon as the system is pressurized, it's time for one last, meticulous leak check.

An electronic leak detector is your best friend here. Carefully sweep the sensor around every single flare nut and connection point. Remember, even a pinhole leak that’s undetectable by ear can drain a system over time, killing its efficiency and setting the client up for a very expensive repair down the road.

With a confirmed leak-free system, you can finally power it on and run it through its paces. This is your last chance to make sure everything is perfect before you pack up your tools.

• Verify Thermostat Communication: Cycle the unit through all its modes—cooling, heating (if it’s a heat pump), and fan-only. Make sure it follows every command without hesitation.
• Measure Temperature Drop: This is the big one. Use a good digital thermometer to measure the air temperature going into the indoor unit (return air) and the temperature of the air coming out (supply air). A healthy system will show a temperature drop, or Delta T, of roughly 16-22 degrees Fahrenheit.
• Listen for Unusual Sounds: Just stand and listen for a minute. Pay attention to both the indoor and outdoor units. You shouldn't hear any rattling, grinding, or excessive vibration. Strange noises are often the first sign of a problem with a fan or compressor.

If you hit a snag during these final tests, a good HVAC troubleshooting guide can be a lifesaver. But when the system is running quiet and you’ve got a solid temperature drop, you know you've done the job right. That’s a successful handover.

Answering Your Top Questions About Split AC Installation

Even a seemingly straightforward commercial AC install can bring up a lot of questions. We get it. Addressing these concerns upfront helps everyone—technicians and clients alike—stay on the same page. It builds confidence and makes sure the project goes smoothly from the get-go.

Here are the answers to some of the most common questions we hear out in the field.

How Long Does a Typical Commercial Installation Take?

For a standard, single-zone commercial setup, a seasoned technician can usually wrap things up in 4 to 8 hours. But honestly, that’s just a baseline.

Things can get more complicated. If we're talking about a multi-zone system, a tricky unit placement, or needing to run brand new electrical circuits, the job can easily stretch into a full day or sometimes even two. We always scope this out beforehand so there are no surprises.

Can I Install a Split AC System Myself?

Look, I understand the temptation to save a few bucks, but a DIY install on a split system is one of the worst ideas out there. We’re dealing with high-voltage electricity and pressurized refrigerant, both of which require licensed pros with very specific tools to handle safely.

A DIY installation is a triple threat: it's dangerous, it almost always leads to poor performance, and it will immediately void the manufacturer's warranty. Always hire a licensed and insured HVAC contractor for the job.

What Is the Most Common Installation Mistake?

From what I’ve seen over the years, two critical mistakes stand out. The first is improperly flaring the copper refrigerant lines. It's a small detail that has huge consequences, leading to slow, damaging leaks. You might not even notice them for months, but they will eventually cripple the system.

The second, equally disastrous error is skipping the vacuum pump evacuation. This leaves moisture and air in the lines, which creates a corrosive acid when it mixes with the refrigerant. This acid eats away at the compressor from the inside out, dramatically shortening the unit's lifespan and leading to an expensive, premature failure.

How Often Should a New Split AC Unit Be Serviced?

For any commercial setting, twice a year is the rule. We recommend an inspection right before the cooling season kicks in and another before the heating season starts (if it’s a heat pump model).

Consistent maintenance is the single best way to protect your investment. A good service visit should always include:

• Cleaning or replacing filters
• Inspecting and thoroughly cleaning both indoor and outdoor coils
• Verifying refrigerant levels are correct
• Checking all electrical connections for safety and tightness

Regular service doesn't just keep the unit running at peak efficiency; it helps us spot small issues before they snowball into major breakdowns. If you ever notice performance dipping between check-ups, it's smart to call for a professional split AC repair right away to prevent further damage. It's also helpful to understand the true cost of running aircon so you can manage your budget and energy use effectively long after the installation is done.
