When you break it down, understanding the core parts of a central air conditioner unit is pretty simple. Think of it as two separate teams—one inside your house and one outside—that work in perfect sync. They use a special fluid, called refrigerant, to grab the heat from inside your home and dump it outdoors, leaving you with cool, comfortable air.
How Your Central Air Conditioner Really Works
It's a common misconception that air conditioners create cold air. In reality, a central AC system is more like a highly efficient "heat ferry." Its one and only job is to move unwanted heat from where you don't want it (your living room) to a place where it doesn't matter (outside).
This whole operation is a continuous cycle, orchestrated by a few key components. You've got the indoor unit and the outdoor unit, which do the heavy lifting. The indoor unit's mission is to absorb heat from your home's air, while the outdoor unit's job is to release that captured heat into the atmosphere. Your thermostat is the brain of the operation, telling the system exactly when to start and stop this heat-moving mission.

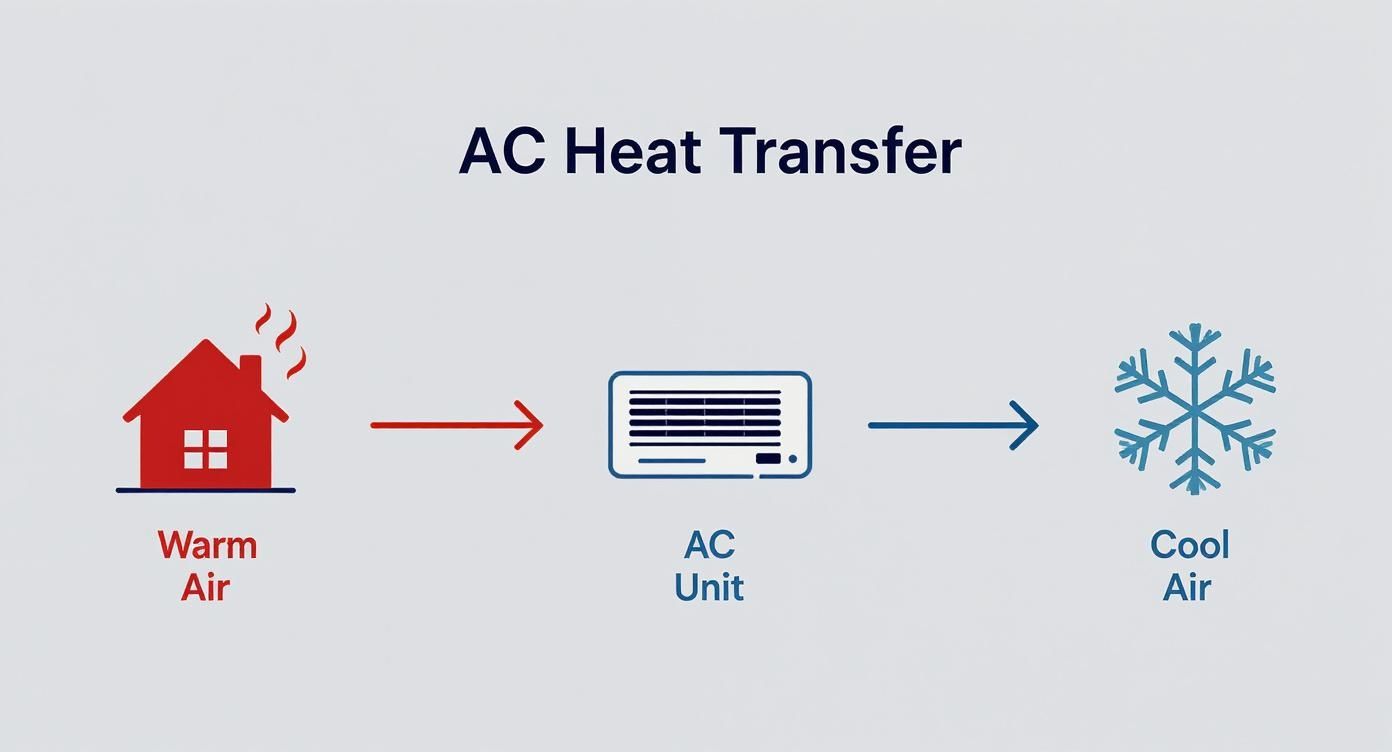

This visual gives you a great overview of how your AC system pulls heat from your home and sends it packing.
As you can see, the system is designed to pull in that warm, stuffy indoor air, run it through a process to strip out the heat, and then send refreshingly cool, conditioned air back into your rooms.
The Indoor and Outdoor Partnership
So, how do these two units talk to each other? They're connected by a pair of copper tubes, known as a line set, which acts as a superhighway for the refrigerant. Each unit has a very distinct job:
- Indoor Unit: Typically tucked away in a closet, attic, or basement, this unit houses the evaporator coil. Its job is to draw in the warm, humid air from inside your home.
- Outdoor Unit: This is that big metal box you see sitting next to your house. It contains the compressor and condenser coil, which work together to wring out all the heat the refrigerant picked up indoors.
The teamwork between the indoor and outdoor units is the magic behind central air conditioning. If one part fails, the whole system grinds to a halt, which is why a properly balanced and professionally installed system is so critical.
Once you get this fundamental concept, figuring out what each specific part does becomes much, much easier. We'll dive into those individual components next.

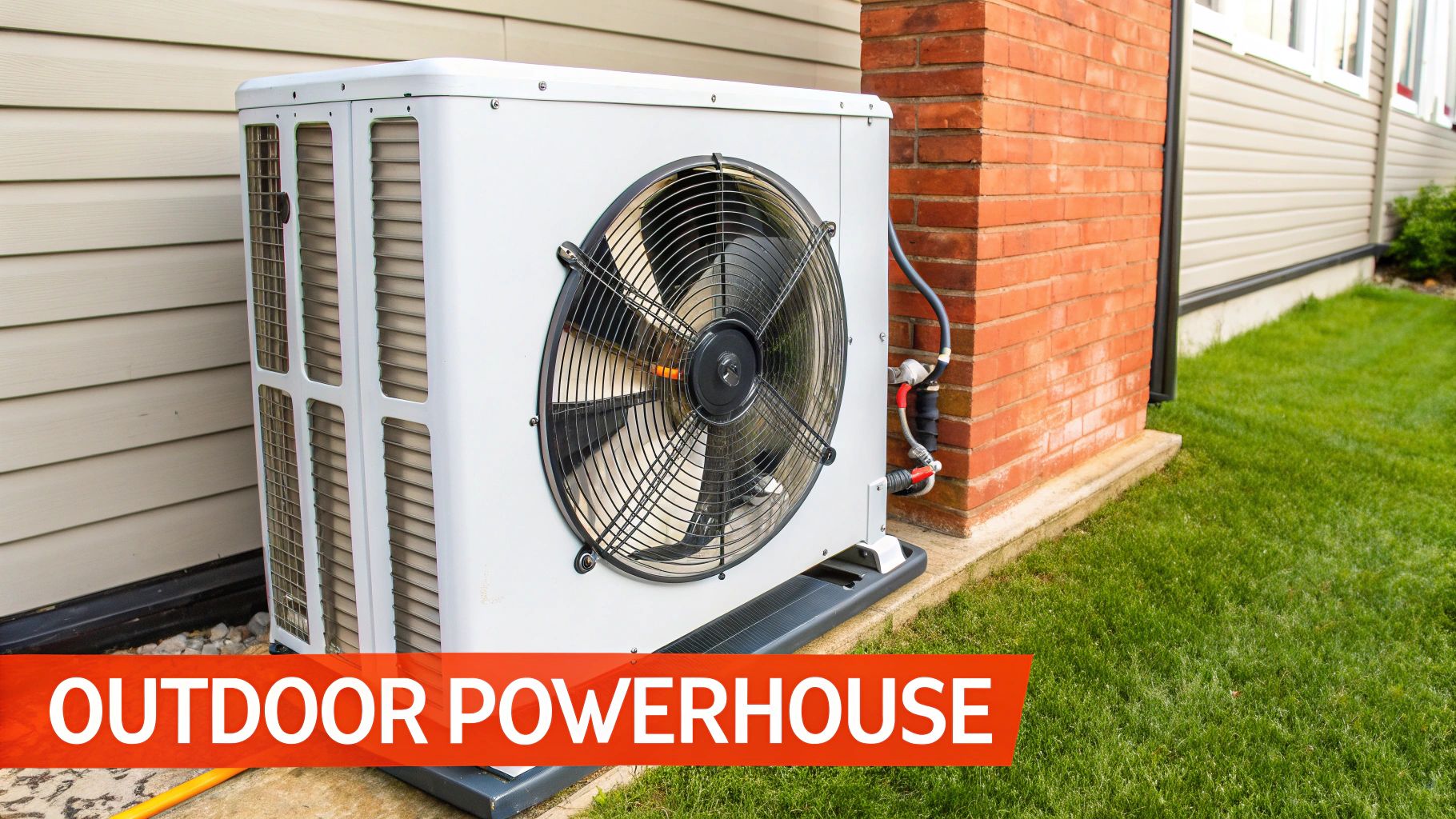

Inside The Outdoor Unit: The System's Powerhouse
That metal box humming away outside your house? It's much more than just a case with a fan. This is the powerhouse of your entire cooling system, the place where the real heavy lifting of heat removal happens. To really understand how your home gets cool, you need to know what’s going on inside this unit.
Think of it as the end of the line for that "heat ferry" we talked about earlier. This is where all the warmth and humidity collected from your living room finally gets dumped outside. Three critical components work in perfect harmony to get this job done.
The Compressor: The Heart Of The System
Deep inside the outdoor unit, you'll find the compressor. Its role is so fundamental that technicians often call it the heart of the system. Just like your heart pumps blood, the compressor is a powerful pump that circulates the refrigerant through the entire AC loop, creating the pressure difference needed to move heat.
The compressor receives refrigerant as a cool, low-pressure gas, full of heat absorbed from your home. It then squeezes this gas with incredible force. This compression process skyrockets the refrigerant's temperature and pressure, transforming it into a scorching-hot, high-pressure gas. This part of the system is a true workhorse, often responsible for up to 70% of your AC's total energy use. You can learn more about the complexities of the central air conditioning market and its components.
The Condenser Coil And Fan: The Heat Release Team
Once the compressor has done its job, that superheated refrigerant gas is pushed into the condenser coil. These are the rows of thin metal tubes and fins you can see through the vents on the unit's casing. Their sole purpose is to act like a giant radiator, getting rid of all that unwanted heat.
As the hot gas snakes through these coils, the large condenser fan on top of the unit spins, pulling a massive volume of ambient outdoor air across them. This steady airflow siphons the heat right out of the refrigerant. As it cools, the refrigerant condenses from a gas back into a high-pressure liquid, officially releasing your home's heat into the great outdoors.
Key Insight: A dirty condenser coil is one of the most common culprits behind an inefficient and overworked AC. When the coils get clogged with dirt, cottonwood fluff, or grass clippings, the fan can't pull enough air through them. This forces the entire system to run longer and harder just to cool your home, driving up your electricity bill.
To keep this heat exchange running smoothly, keeping the outdoor unit clean and clear of any obstructions is absolutely essential.
Outdoor AC Unit Component Breakdown
| Component | Primary Function | Common Maintenance Tip |
|---|---|---|
| Compressor | Pressurizes and circulates refrigerant throughout the system. | Listen for unusual grinding or clicking noises, which can indicate a developing problem that needs a professional inspection. |
| Condenser Coil | Releases the collected indoor heat into the outside air. | Gently rinse the coils with a hose (never a pressure washer) annually to remove dirt and debris buildup. |
| Condenser Fan | Pulls air across the condenser coils to aid heat dissipation. | Ensure the area around the unit is clear of leaves, plants, and debris to maintain proper airflow. |
By keeping these crucial components in good shape, you're making sure the powerhouse of your AC system can perform at its absolute best.

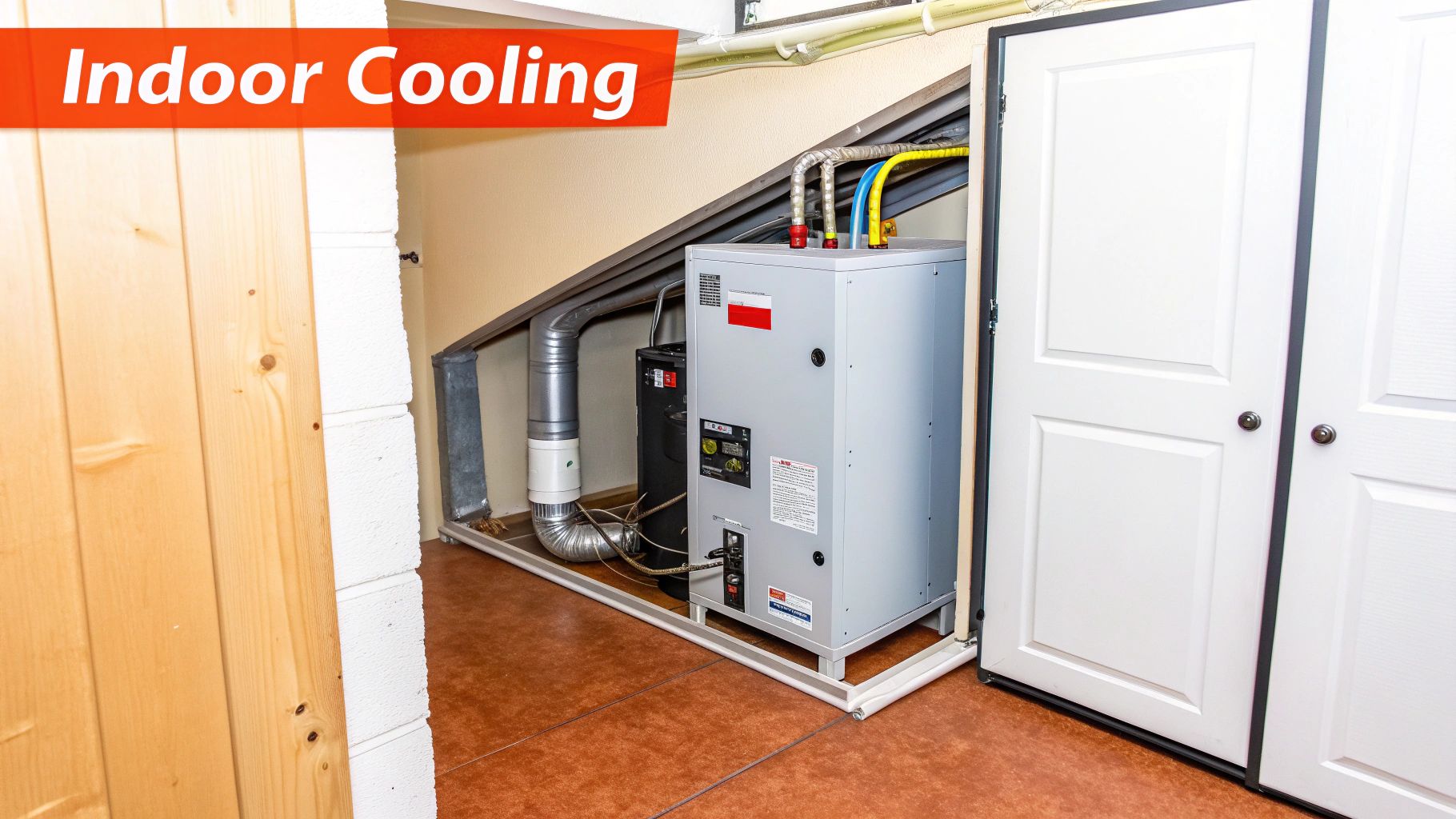

Exploring The Indoor Unit: The Source of Cool Air
While the outdoor unit is working hard to dump heat outside, the real cooling magic happens inside your home. Usually tucked away in a basement, attic, or closet, the indoor unit is responsible for pulling the warmth and humidity out of your air and sending back that refreshingly cool comfort you crave.
This part of the system is really a two-part act, featuring the evaporator coil and the air handler. They work as a team to draw in your home's warm air, wring out its heat, and then push it back through your vents as chilled, comfortable air.
The Evaporator Coil: The Heat Sponge
The main event inside is the evaporator coil. After the refrigerant makes its trip from the outdoor unit, it arrives at this coil as an extremely cold, low-pressure liquid. The coil looks a lot like its counterpart outside—a network of metal tubes and fins—but its job is the exact opposite.
Think of the evaporator coil as a giant, ice-cold sponge for heat. As the air handler's fan pulls your warm, sticky indoor air across the coil's frosty surfaces, a double-action cooling process kicks in:
- Heat Absorption: The frigid coil immediately soaks up heat from the air, just like a cold glass of iced tea absorbs warmth from the air around it on a summer day.
- Dehumidification: As the warm air cools, moisture condenses onto the coil's surface, dripping into a collection pan. This water is then safely funneled out of your home through a condensate drain.
This is why your AC doesn't just lower the temperature; it also makes the air feel less muggy and much more pleasant. Now full of heat, the refrigerant evaporates back into a gas and heads back outside to the compressor to start the cycle all over again.
The Air Handler: The Lungs of the System
Of course, the evaporator coil can't do its job if air isn't moving across it. That's where the air handler comes in. It's basically a big metal cabinet that houses both the evaporator coil and a powerful fan, often called a blower. The air handler is the engine that drives air circulation for your entire home.
It's responsible for pulling air in through your return vents, pushing it over the evaporator coil to get cooled, and then sending that newly chilled air through your ductwork to the supply vents in each room. The strength of this fan is absolutely crucial—weak airflow is one of the most common reasons an AC system runs inefficiently or breaks down.
Critical Maintenance Tip: If you do one thing for your AC system, make it this: change your air filter regularly. The filter is located in the air handler and acts as the first line of defense, protecting the sensitive blower and coil from dust, debris, and pet hair. A clogged filter is the #1 enemy of proper airflow.
When a filter gets clogged, it chokes the system. The evaporator coil doesn't get enough warm air, causing it to get too cold and eventually freeze solid into a block of ice. A frozen coil stops all cooling, blocks airflow entirely, and can put immense strain on the compressor—the most expensive part to replace. Just changing your filter every 1-3 months is the simplest, cheapest way to prevent this disaster.
The Unsung Heroes: Refrigerant and Controls
We've talked about the big, noisy parts of your AC system, but two invisible elements are really running the show: the refrigerant that moves the heat and the controls that tell everything what to do. Without them, all that high-tech metal is just a fancy sculpture.
Think of refrigerant as the system's circulatory system. It’s a specially formulated chemical that can easily absorb and release heat as it changes from a liquid to a gas and back again. It's the "heat ferry" that endlessly shuttles warmth from inside your home to the great outdoors.
Of course, you can't just let refrigerant flow freely. It needs to be carefully managed. That’s where the expansion valve comes in. This small but critical part acts like a gatekeeper, metering the precise amount of cold, liquid refrigerant that enters the evaporator coil. This ensures the system pulls heat out of your air at just the right pace.
The Brains of the Operation
If refrigerant is the blood, then the thermostat is most definitely the brain. That little box on your wall is the command center for your entire cooling system. It's constantly taking the temperature of the room and checking it against the temperature you’ve set.
The moment the room gets warmer than you want, the thermostat sends a low-voltage electrical signal to the air handler and the outdoor unit, kicking them into action. Once the room cools down to your set point, it cuts the power, and the system shuts off until it's needed again.
Key Takeaway: The thermostat's accuracy is everything. A faulty one can cause your AC to run constantly or not enough, a frustrating problem known as short-cycling. This not only wrecks your comfort but also sends your energy bills through the roof.
Upgrading Your Command Center
A basic thermostat is fine—it turns the system on and off. But today's smart thermostats offer a whole new level of control. These devices learn your daily routines, let you adjust the temperature from an app on your phone, and even give you reports on your energy use.
For anyone serious about efficiency, exploring smart thermostat energy savings is a no-brainer. They make sure you're not blasting cold air into an empty house, turning a simple on/off switch into a powerful tool for saving money.
The Support Network: Ductwork, Drains, and Filters
While the big indoor and outdoor units seem to do all the work, they're nothing without their critical support network. This behind-the-scenes crew—the ductwork, condensate drain, and air filter—is what actually gets the cool, clean air to you. If any one of them fails, the whole system grinds to a halt.
Think of your ductwork as your home's respiratory system. These hidden channels snake through your walls, ceilings, and attic, acting as the arteries that deliver cool, conditioned air to every single room. They also work in reverse, pulling warm air back into the system to be chilled and sent out again.
The problem is, this vital network is often leaky and inefficient. According to ENERGY STAR, a typical home loses an astonishing 20% to 30% of its conditioned air through small gaps, poor connections, and holes in the ductwork. This escaped air ends up in your attic or crawlspace, forcing your AC to run longer and harder just to keep up.
The Unsung Hero: The Condensate Drain
When your evaporator coil pulls humidity out of the air, all that water has to go somewhere. It drips down into a collection pan and then flows out of your house through a little pipe called the condensate drain line. It's a simple part, but a clog here can spell disaster.
If that line gets blocked by algae, sludge, or debris, the water has nowhere to go. It backs up, overflows the pan, and can cause thousands of dollars in water damage to your ceilings, walls, and insulation. That standing water also becomes a breeding ground for mold.
A clear condensate line is non-negotiable for a healthy AC system. A simple blockage can quickly escalate into a costly repair involving not just your HVAC system but also home remediation.
The System's Gatekeeper: The Air Filter
And finally, we have the humble air filter. This might be the single most important part of your AC system that you can easily maintain yourself. Tucked away in or near your air handler, its one job is to trap dust, pollen, pet dander, and other gunk before it can get sucked into your system's sensitive machinery.
A clean filter keeps the air flowing freely, prevents the evaporator coil from getting caked in dirt, and directly improves the quality of the air you breathe. You’ve got a few options to choose from:
- Fiberglass Filters: These are your basic, inexpensive filters. They do a decent job of stopping large debris like lint and dust bunnies from getting into the unit.
- Pleated Filters: A big step up. Their folded design provides more surface area to catch smaller particles like mold spores and pet dander without choking off airflow.
- HEPA Filters: The gold standard. High-Efficiency Particulate Air filters capture an incredible 99.97% of airborne particles, making them a must-have for anyone with allergies or asthma.
Ignoring your filter is like forcing your system to breathe through a straw. It struggles, loses efficiency, and eventually breaks down. Keeping this entire support network in good shape is the key to a reliable AC, which is why consistent maintenance is so important. You can see what's involved by checking out our guide on professional air conditioning maintenance services.
Troubleshooting Common AC Problems
Even the most well-maintained air conditioner can run into trouble now and then. One minute you're comfortable, the next you're wondering why the house feels stuffy or what that strange clanking sound is. Knowing which parts of a central air conditioner unit are likely culprits is the key to figuring out what's wrong.
This guide will walk you through common symptoms and their probable causes, helping you know when you can fix it yourself versus when it's time to call in a pro.
You’d be surprised how many common complaints, like weak airflow or a system that just won't kick on, trace back to a simple, overlooked issue. A few basic checks can often save you the cost and hassle of a service call.
Simple Fixes You Can Try First
Before you pick up the phone, take a few minutes to run through these quick diagnostic steps. A surprisingly high number of service calls are for these exact issues, and you can solve them yourself in no time.
- Check the Thermostat: First things first. Is the system actually set to "cool"? And is the target temperature set lower than the current room temperature? Sometimes, the fix is as simple as a dead battery or an accidental bump of the controls.
- Inspect the Air Filter: A filthy, clogged filter is a classic cause of poor cooling. It literally suffocates your system, blocking airflow and sometimes causing the evaporator coil to freeze solid.
- Check Circuit Breakers: Your AC has breakers in your home's main electrical panel. A power surge could have tripped one, cutting power to either the indoor or outdoor unit. Find the right breaker and try resetting it once.
When to Call a Professional
While it’s always smart to start with the basics, some problems are clear signals of a more serious issue that requires a trained technician. Anything involving the system's electrical guts or the refrigerant is best left to the experts.
Refrigerant is not a DIY job. By law, only an EPA-licensed technician can handle refrigerant. If your system is low on refrigerant, it means there's a leak somewhere that needs to be professionally found and sealed.
If you hear grinding or screeching from the outdoor unit, that could be a failing compressor. A musty, dirty-sock smell from the vents often points to mold in the ductwork. If the system is turning on and off every few minutes, something is seriously wrong. These are all signs of bigger problems that can cause catastrophic (and expensive) damage if you ignore them.
In cases of serious or recurring mold, you may need professional mould remediation services to safely clear the contamination. For all other complex mechanical and electrical issues, our team is here to help with fast and reliable AC repair services to get your home cool again.
Frequently Asked Questions About AC Parts
Even with a full breakdown of the system, it's natural to have a few more practical questions pop up. Let's tackle some of the most common ones we hear from homeowners about the parts of a central air conditioner unit.
Which AC Part Is Most Expensive To Replace?
Hands down, the compressor is almost always the most expensive single part to replace. Think of it as the engine of your AC system—it does the heaviest lifting, and replacing it is a major operation.
The high cost of the component itself, plus the skilled labor needed to properly install it, often leads to a tough decision. In many cases where the unit is over 10 years old, it makes more financial sense to replace the entire outdoor condenser unit rather than just the compressor.
How Often Should I Change My Air Filter?
For the common 1-inch thick filters, a good baseline is every 1 to 3 months. But this isn't a one-size-fits-all answer.
Your home's specific situation is what really matters. If you have pets shedding dander, live near a dusty road, or someone in the house has allergies, you'll want to check it monthly. The moment it looks clogged, it's time for a new one to keep your air clean and your system running efficiently.
Important Note: Never attempt to handle refrigerant on your own. It's a federally controlled substance that, by law, can only be managed by an EPA-licensed professional. If your system is low on refrigerant, it means there’s a leak somewhere that requires an expert to locate and fix.
